Steering Wheel Horn Contact Replacement

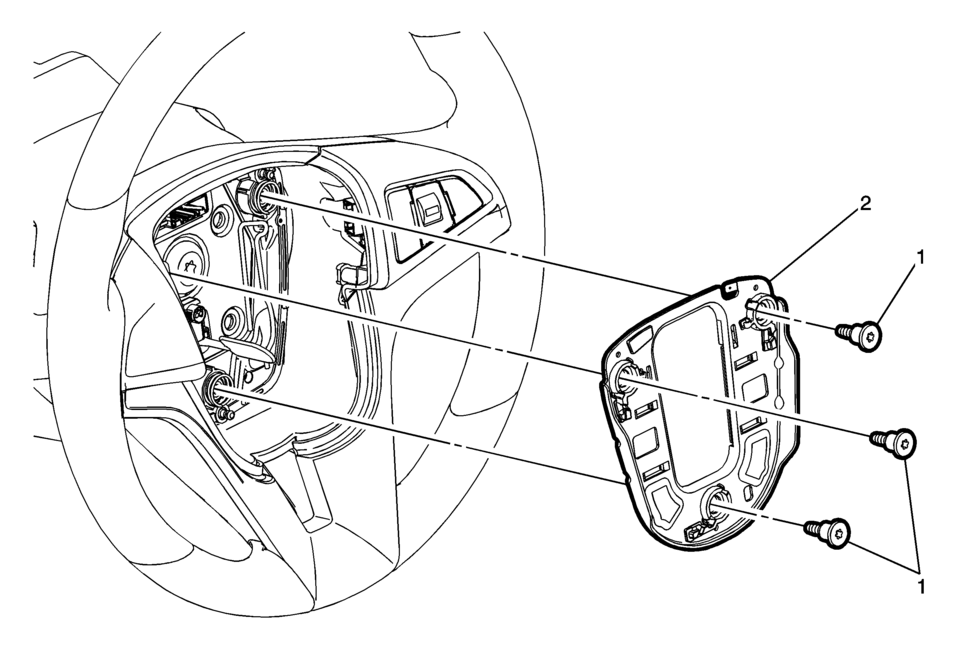

Callout

Component Name

Preliminary Procedure

Remove the steering wheel inflatable restraint module. Refer to Airbag Steering Wheel Module Replacement.

1

Steering Wheel Horn Contact Spring Retainer Bolt (Qty: 3)

Caution:

Refer to Fastener Caution.

Tighten


5.5 Y(49 lb in)

2

Steering Wheel Horn Contact Assembly

Procedure

Disconnect the electrical connectors.
