Chevrolet Sonic Repair Manual: Taillamps, Turn Signal, Stoplamps, and Back-Up Lamps

Chevrolet Sonic Repair Manual / Body / Body Electrical / Lighting / Bulbs / Taillamps, Turn Signal, Stoplamps, and Back-Up Lamps

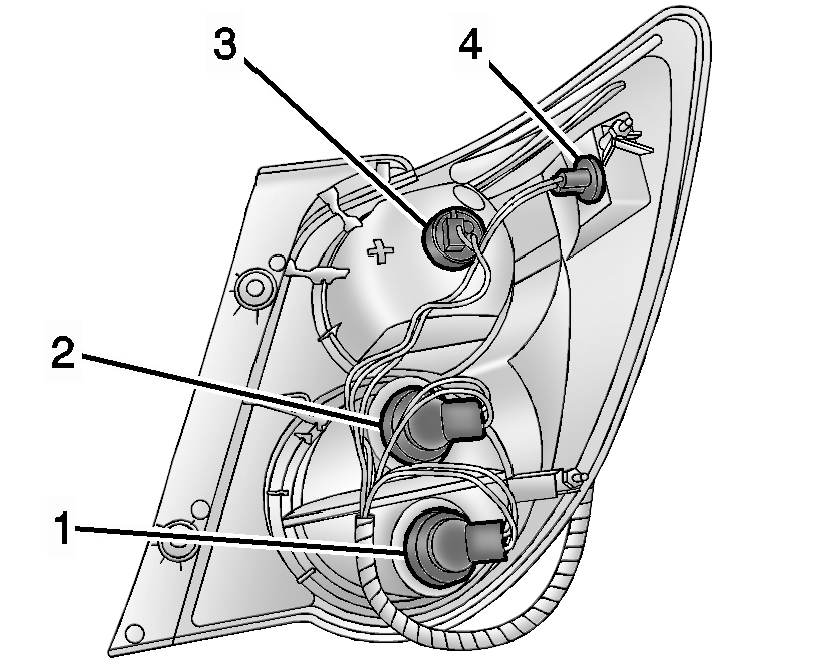

Sedan Taillamp Shown, Hatchback Taillamp Similar

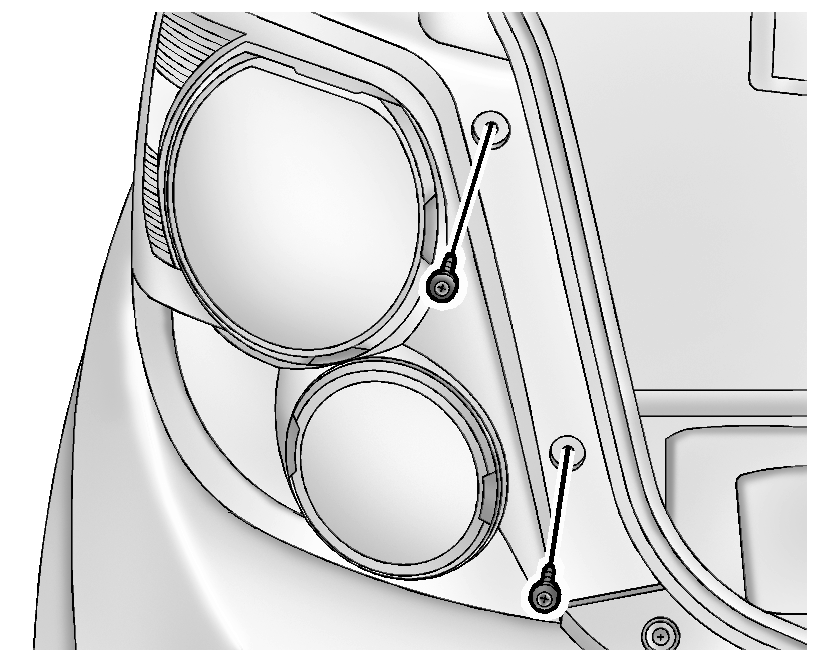

Sedan Taillamp Shown, Hatchback Taillamp Similar

  1. Back-up Lamp
  2. Turn Signal Lamp
  3. Stop Lamp/Taillamp
  4. Sidemarker Lamp

To replace one of these bulbs:

  1. Open the trunk.

  2. Remove the two screws, which secure the taillamp assembly.
  3. Remove the taillamp assembly by pulling it straight back until the two posts disengage from the grommets.
  4. Remove the bulb socket from the taillamp assembly by turning it counterclockwise.
  5. Remove the bulb by pulling it straight out.
  6. Install a new bulb into the bulb socket.
  7. Install the bulb socket into the taillamp assembly by turning it clockwise.
  8. Install the taillamp assembly and tighten the two screws.
Stop and Turn Signal Lamp Bulb Replacement (Sedan)
Stop and Turn Signal Lamp Bulb Replacement Callout Component Name Preliminary Procedure Remove the tail lamp assembly. Refer to ...
