Chevrolet Sonic Repair Manual: Torque Converter Fluid Seal Replacement

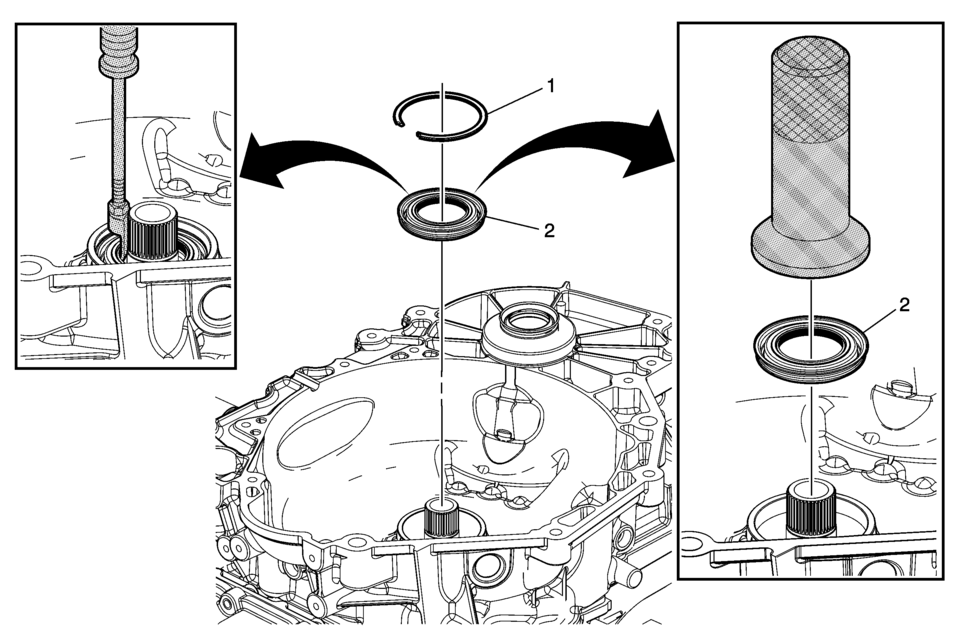

Torque Converter Fluid Seal Replacement

Callout

Component Name

1

Torque Converter Fluid Seal Retainer

2

Torque Converter Fluid Seal

Special Tools

  • DT-47791-A Seal Installer
  • DT-6125-B Slide Hammer
  • EN-23129 Universal Seal Remover

For equivalent regional tools, refer to Special Tools.
