Torque Converter Housing with Fluid Pump Assembly Installation

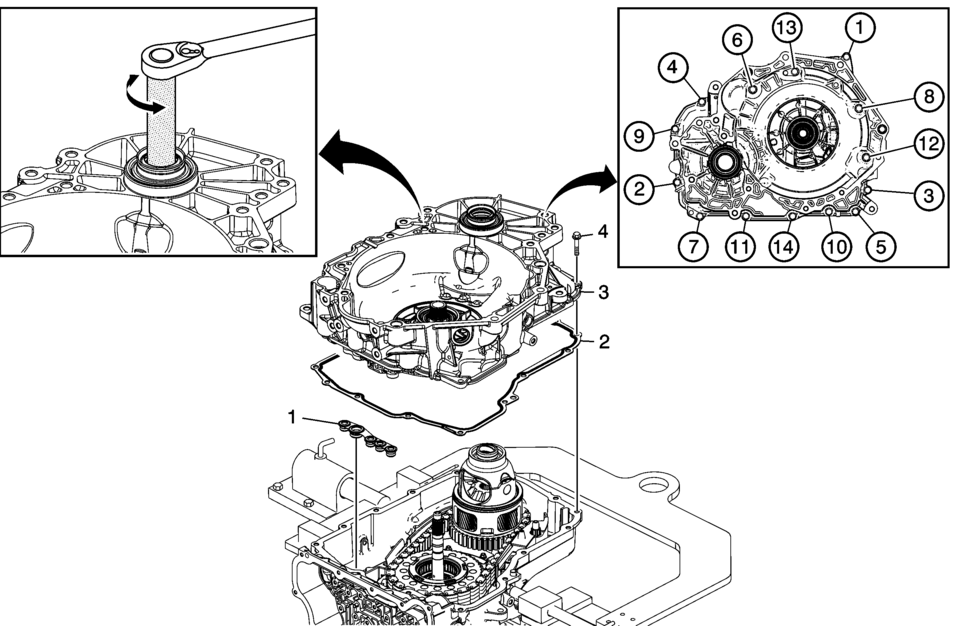

Callout

Component Name

1

Fluid Pump Seal Assembly

2

Torque Converter Housing Gasket

3

Torque Converter (w/Fluid Pump) Housing Assembly

Note:

Rotate the differential slightly in each direction using DT-48277 rotating tool to align the Differential Pinion Gears with the Differential Ring Gear in the Torque Converter Housing.

Special Tool

DT-48277 Differential Rotating Tool

For equivalent regional tools, refer to Special Tools.

4

Torque Converter and Differential Housing Bolts M8 x 30 (Qty: 14)

Caution:

Refer to Fastener Caution.

Procedure

Tighten the bolts in sequence shown.

Tighten


10 Y (89 lb in) then rotate the bolt an additional 50 degrees

Special Tool

EN-45059 Angle Meter or equivalent

For equivalent regional tools, refer to Special Tools.

Fluid Pump Selective Measurement
Fluid Pump Selective Measurement Callout Component Name 1 A/Trans Fluid Pump Body Note: Measure the distance fro ...

Torque Converter Housing with Fluid Pump Assembly Installation (6T40/45/50 Non Hybrid)
Torque Converter Housing with Fluid Pump Assembly Installation Callout Component Name 1 Fluid Pump Seal Assembly ...
