Chevrolet Sonic Repair Manual: Transmission Fluid Pump Assemble (6T30)

Chevrolet Sonic Repair Manual / Powertrain / Transmission/Transaxle / Automatic / General / Transmission Fluid Pump Assemble (6T30)

Table 1: Fluid Pump w/Valve Trains Assemble
Table 2: Torque Converter Fluid Seal and Fluid Filter Assembly Assemble

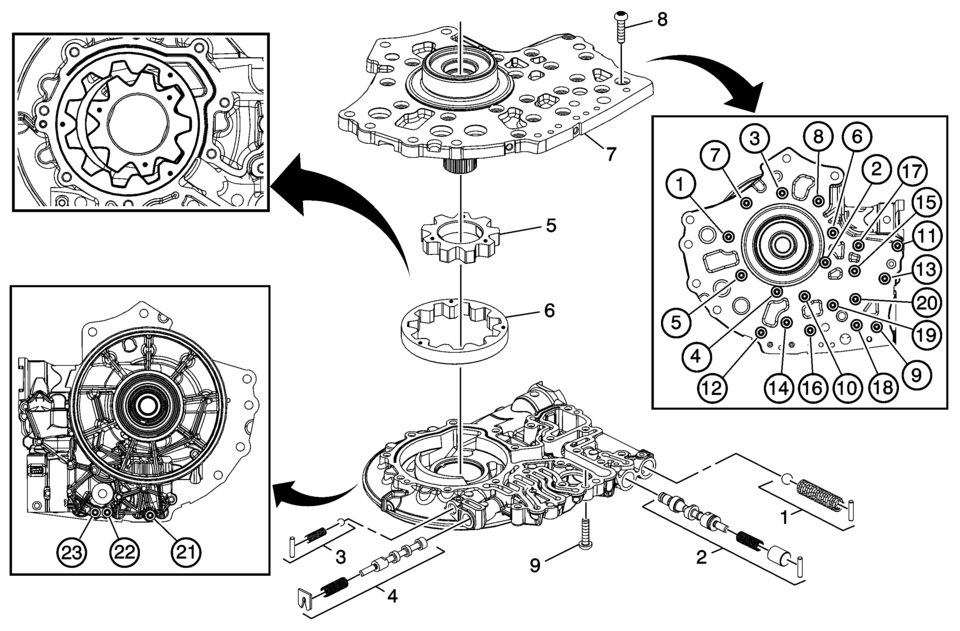

Fluid Pump w/Valve Trains Assemble


Fluid Pump w/Valve Trains Assemble

Callout

Component Name

1

TCC Blow Off Ball Valve Train

2

Pressure Regulator Valve Train

3

Fluid Pump Blow Off Ball Valve Train

4

TCC Control Valve Train

5

Fluid Pump Drive Gear

Note:

The chamfer on the drive gear teeth face towards the pump body.

6

Fluid Pump Driven Gear

Note:

The chamfer on the driven gear O.D. faces the pump body.

7

Fluid Pump Cover

8

Fluid Pump Cover Bolts M6 x 21.5 (Qty: 20)

Caution:

Refer to Fastener Caution.

Tighten


12 Y (106 lb in)

9

Fluid Pump Cover Bolts M6 x 18.5 (Qty: 3)

Tighten


12 Y (106 lb in)

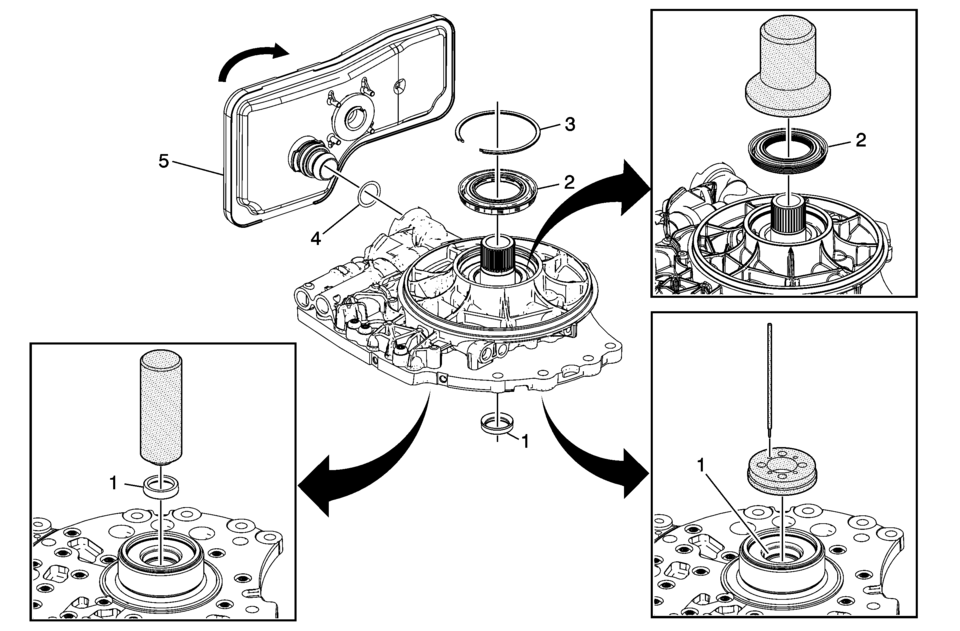

Torque Converter Fluid Seal and Fluid Filter Assembly Assemble


Torque Converter Fluid Seal and Fluid Filter Assembly Assemble

Callout

Component Name

1

Torque Converter Fluid Seal Assembly

Note:

The fluid seal assembly must be staked in place using DT-49131 seal staking tool to ensure proper seal retention.

Special Tool

  • DT-48270 Seal Installer
  • DT-49131 Seal Staking Tool

For equivalent regional tools, refer to Special Tools.

2

Torque Converter Fluid Seal

Special Tool

DT-47791 Seal Installer

For equivalent regional tools, refer to Special Tools.

3

Torque Converter Fluid Seal Retainer

4

A/Trans Fluid Filter Seal

5

Fluid Filter Assembly

Note:

Rotate filter 90 degrees to engage locking tangs.
