Chevrolet Sonic Repair Manual: Transmission Fluid Pump, Front Differential Carrier Baffle, and Front Differential Ring Gear Removal (6T30)

Chevrolet Sonic Repair Manual / Powertrain / Transmission/Transaxle / Automatic / General / Transmission Fluid Pump, Front Differential Carrier Baffle, and Front Differential Ring Gear Removal (6T30)



Transmission Fluid Pump, Front Differential Carrier Baffle, and Front Differential Ring Gear Removal

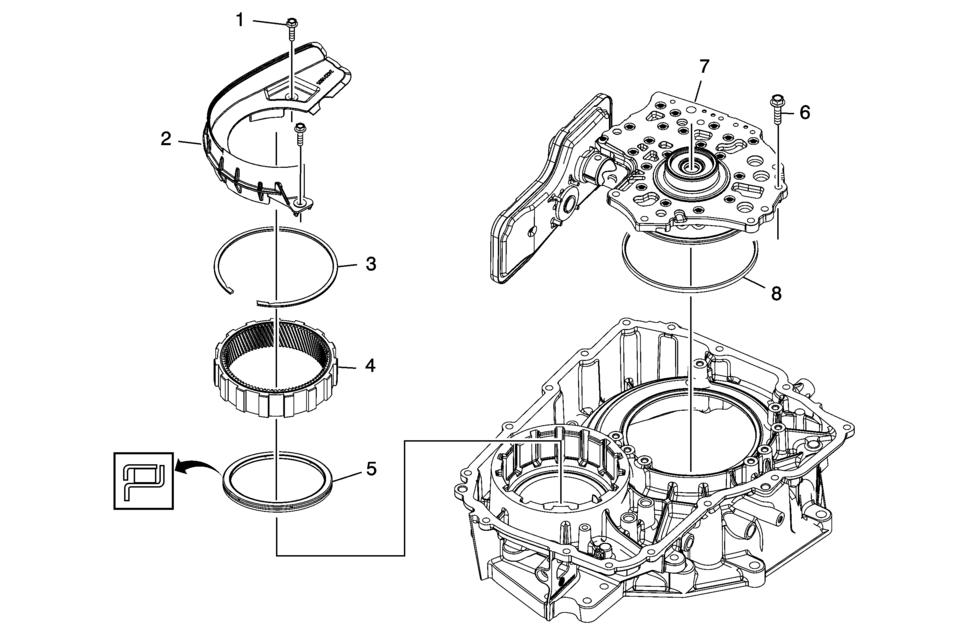

Callout

Component Name

1

Front Differential Carrier Baffle Bolts M6 x 25 (Qty: 2)

2

Front Differential Carrier Baffle

3

Front Differential Ring Gear Retainer

Note:

Note the direction of the taper to ensure proper installation.

4

Front Differential Ring Gear

5

Front Differential Carrier Bearing Assembly

6

Fluid Pump Bolts M8 x 33 (Qty: 7)

7

Fluid Pump Assembly

8

Torque Converter and Differential Housing Seal

Transmission Fluid Pump, Front Differential Carrier Baffle, and Front Differential Ring Gear Installation (6T40/45)
Transmission Fluid Pump, Front Differential Carrier Baffle, and Front Differential Ring Gear Installation Callout Component Name ...

Transmission Fluid Pump, Front Differential Carrier Baffle, and Front Differential Ring Gear Removal (6T40/45)
Transmission Fluid Pump, Front Differential Carrier Baffle, and Front Differential Ring Gear Removal Callout Component Name 1 ...
