Windshield Wiper Arm Replacement

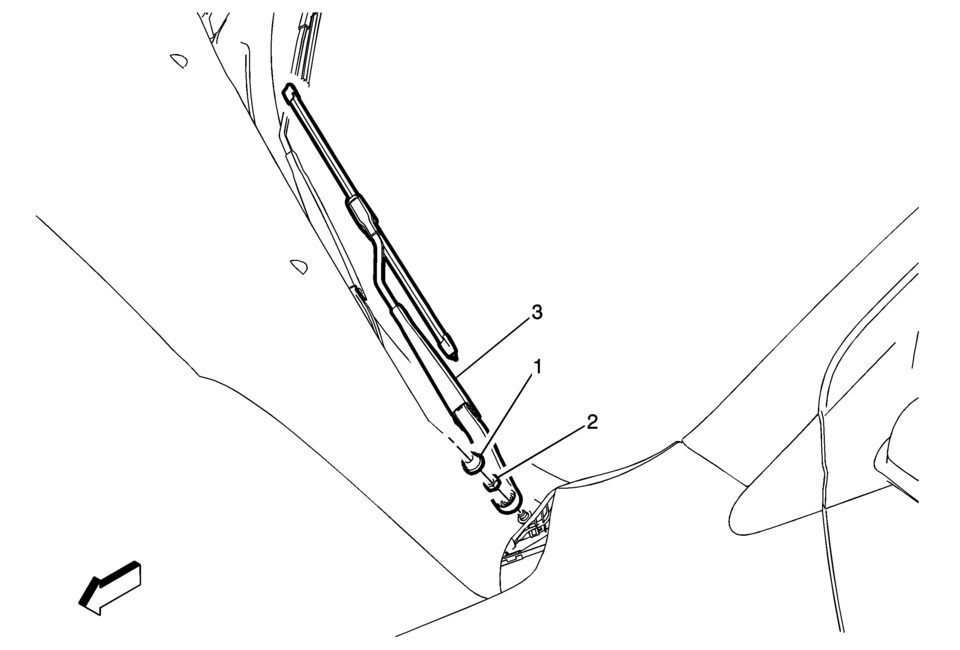

Callout

Component Name

Preliminary Procedure

Open and support the hood assembly.

1

Windshield Wiper Arm Nut Cap

Tip:

Use a small flat-bladed tool in order to release the finish cap from the wiper arm assembly.

2

Windshield Wiper Arm Nut

Caution:

Refer to Fastener Caution.

Tighten


25?€‰Y(18?€‰lb?€‰ft)

3

Windshield Wiper Arm

Procedure

  1. Use the BO??’49385 puller in order to assist in the removal of the wiper arm from the wiper module pivot shaft.
  2. Remove the wiper arm from the pivot shaft.
  3. Clean the pivot shaft knurls with a soft wire brush before installing a new wiper arm.

Special Tools

BO??’49385 Wiper Arm Puller

For equivalent regional tools, refer to Special Tools.
