Chevrolet Sonic Repair Manual: Windshield Wiper Motor Replacement

Chevrolet Sonic Repair Manual / Body / Wipers, Washers / Wipers / Windshield Wiper Motor Replacement



Windshield Wiper Motor Replacement

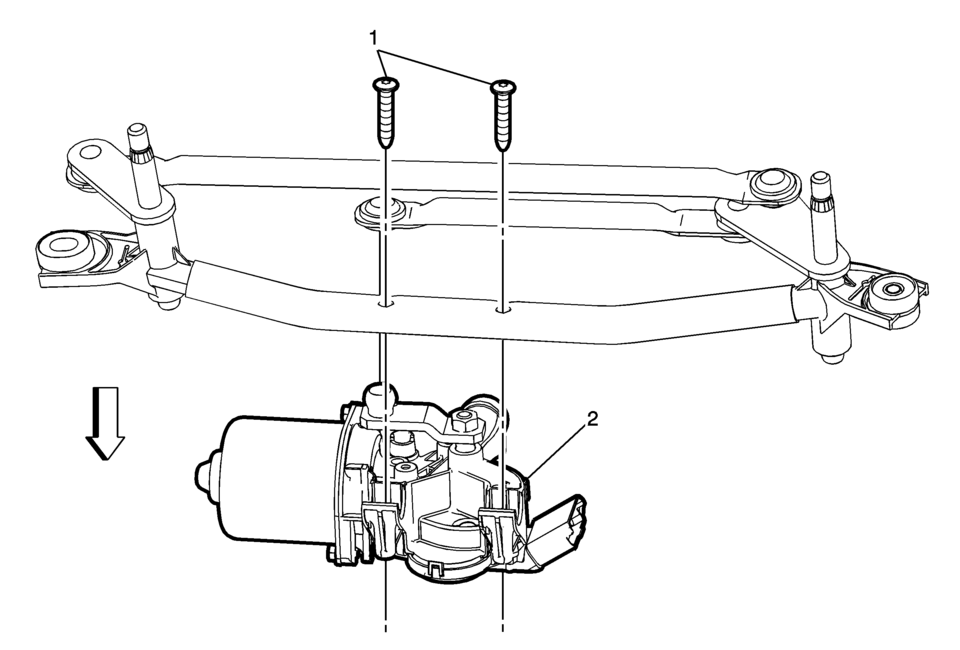

Callout

Component Name

Preliminary Procedure

Remove the wiper system module. Refer to Windshield Wiper System Module Replacement

1

Windshield Wiper Motor Bracket Screw (Qty:?€‰2)

Caution:

Refer to Fastener Caution.

Tighten


8.5?€‰Y (75?€‰lb?€‰in)

2

Windshield Wiper Motor

Procedure

  1. Use a wiper linkage separator or similar tool, separate the transmission drive link from the wiper motor crank arm ball stud.
  2. Use a wiper linkage installer or similar tool, install the transmission drive link onto the wiper motor crank arm ball stud.

    Tip:

    Apply a small amount of grease to the inner cup on the transmission link to aid in installation.
