WARNING
Failure to properly follow all warnings and operating instructions for the Rear Automatic Braking (RAB) system in the Nissan Armada may result in serious injury or even fatal accidents.
Always check your surroundings carefully by using side and rearview mirrors and by physically turning to look in the direction of travel before and during reversing. Never rely solely on the Nissan Armada RAB system. The driver must remain alert, maintain full control, and ensure safe maneuvering of the vehicle at all times.
The Rear Automatic Braking system in the Nissan Armada is designed to assist the driver while reversing by monitoring the area directly behind the vehicle. If an obstacle is detected and the driver does not respond in time, the system can automatically apply the brakes to help prevent a collision or significantly reduce the severity of an impact.
This advanced safety feature enhances driver confidence during parking and low-speed maneuvers, especially in tight or obstructed spaces.

Example

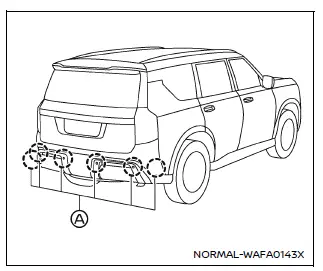

The Nissan Armada RAB system utilizes sonar sensors integrated into the rear bumper to detect objects behind the vehicle. These sensors continuously scan the surrounding area and provide real-time feedback to support safer reversing.
NOTE:
The Nissan Armada RAB system can be temporarily disabled by selecting the RAB temporary ON/OFF option via the touch screen display, allowing the driver to adjust system behavior depending on specific driving conditions.
RAB system operationInstrument Panel Compartment Replacement
Instrument Panel Compartment Replacement
Callout
Component Name
Preliminary Procedure
Remove the right instrument panel upper trim panel. Refer to Instrument
Panel Upper Trim Panel Replacement - Right Side.
...
Timing Belt Upper Front Cover Installation
Install the timing belt upper front cover (1).
Caution: Refer to Fastener Caution.
Install the 2 timing belt upper front cover bolts (2) and tighten to
6 Y(53 lb in).
...
Manual Shift Shaft Seal Removal
Manual Shift Shaft Seal Removal
Callout
Component Name
1
Manual Shift Shaft Seal
Note: Use the DT-45201 seal remover to remove the seal
to prevent damage to the case surface.
Special Tools
DT-452 ...
