Hydraulic Valve Lash Adjuster Arm Replacement
Callout	Component Name
Preliminary Procedures Remove the intake camshaft. Refer to Intake Camshaft Replacement. Remove the exhaust camshaft. Refer to Exhaust Camshaft Replacement.
1	Hydraulic Valve Lash Adjuster Arms Procedure Mark the hydraulic valve lash adjuster arms upon removal to ensure installation is in the correct position. Lubricate the hydraulic valve lash adjuster arms with engine oil before installing the arms.

Hydraulic Valve Lash Adjuster Arm Removal

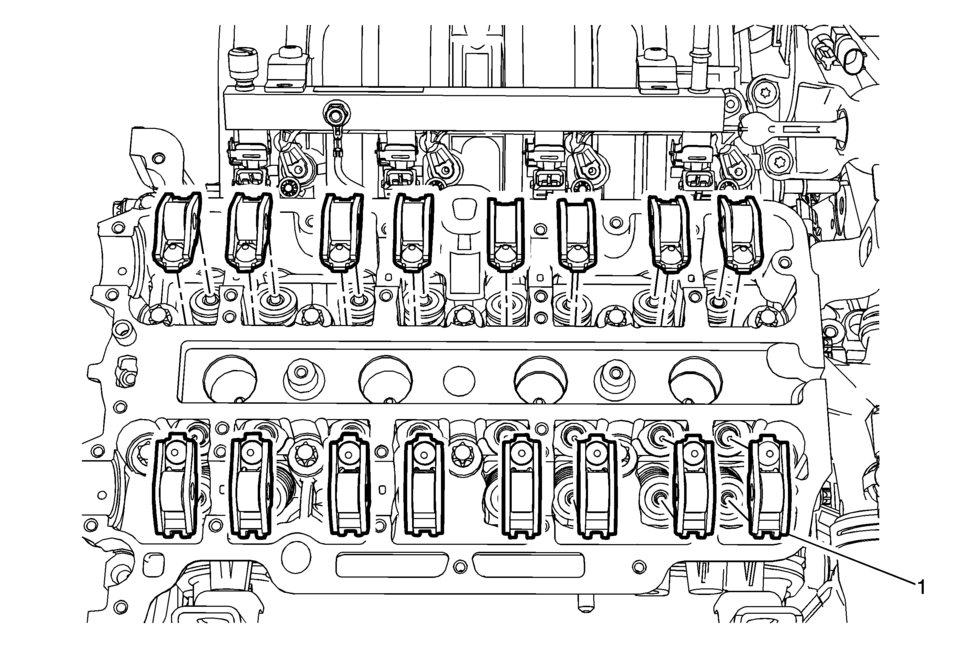

Note: Mind the installation position of the hydraulic valve lash adjuster arms. Remove the 16 hydraulic valve lash adjuster arms (1). ...

Hydraulic Valve Lash Adjuster Installation

Note: Mind the installation position of the hydraulic valve lash adjusters. Lubricate the hydraulic valve lash adjusters with engine oil. Install the 16 hydraulic valve ...
