Chevrolet Sonic Repair Manual: Ignition Lock Cylinder Replacement
- Removal Procedure
-
- Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection.
- Remove the upper trim cover and the lower trim cover from the steering column. Refer to Steering Column Lower Trim Cover Replacement.
- Insert the key into the ignition lock cylinder and turn the key to the RUN position.

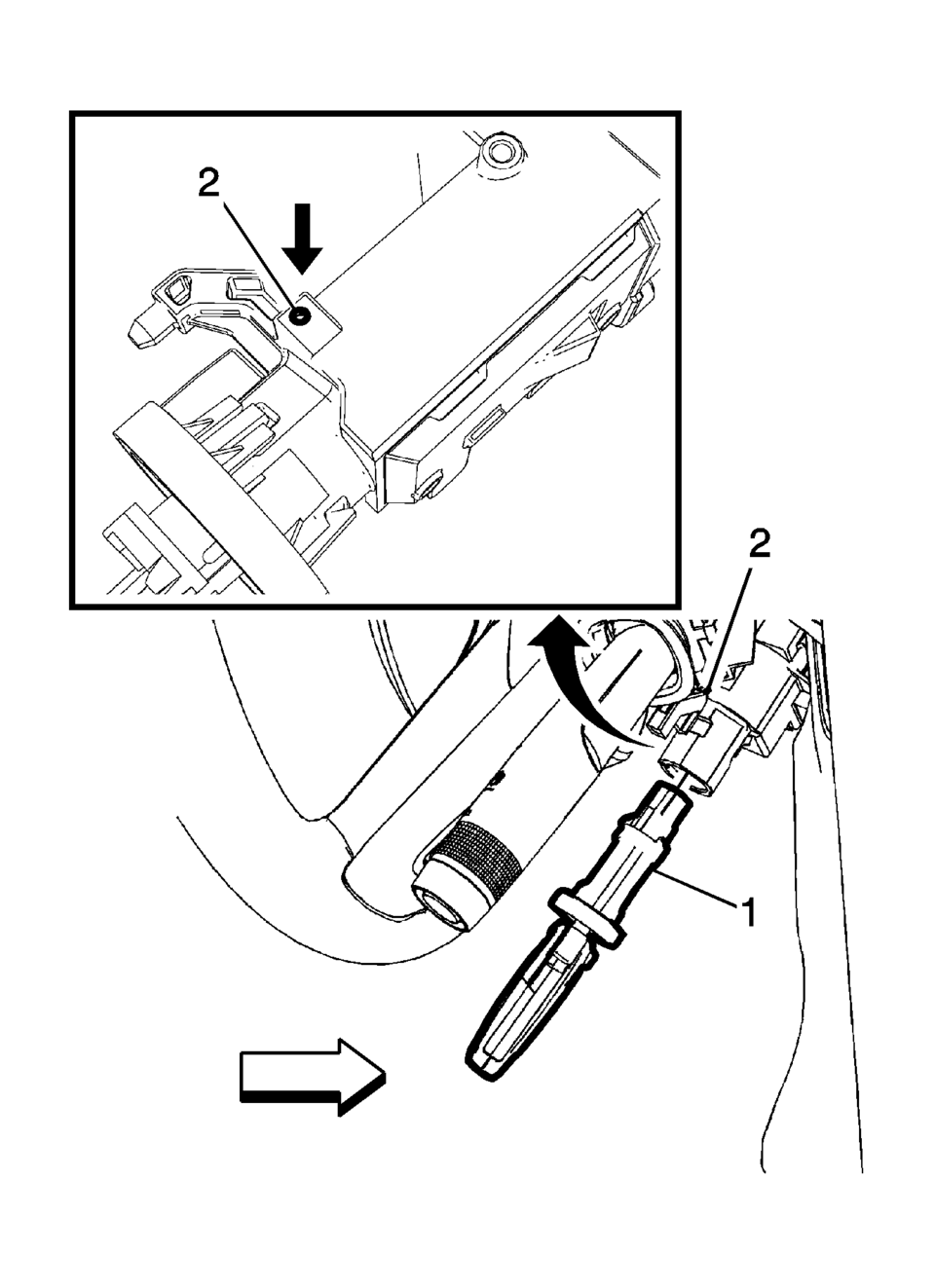

- Push a pick-type tool into the access hole (2) in the ignition and start switch housing and press the ignition lock cylinder lock tab down.
- Remove the ignition lock cylinder (1) from the ignition and start switch housing.
- Installation Procedure
-
- If you are installing a new ignition lock cylinder, code the lock cylinder. Refer to Lock Cylinder Coding - Ignition.
- Turn the key to the RUN position and insert ignition lock cylinder (1) into the ignition and start switch housing.
- Turn the key to the LOCK position and remove the key from the ignition lock cylinder.
- Install the upper trim cover and the lower trim cover to the steering column. Refer to Steering Column Lower Trim Cover Replacement.
- Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection.
