Chevrolet Sonic Repair Manual: Instrument Panel Lower Airbag Replacement - Passenger Side

Chevrolet Sonic Repair Manual / Body / Restraints / Restraints Control / Instrument Panel Lower Airbag Replacement - Passenger Side



Instrument Panel Lower Airbag Replacement - Passenger Side

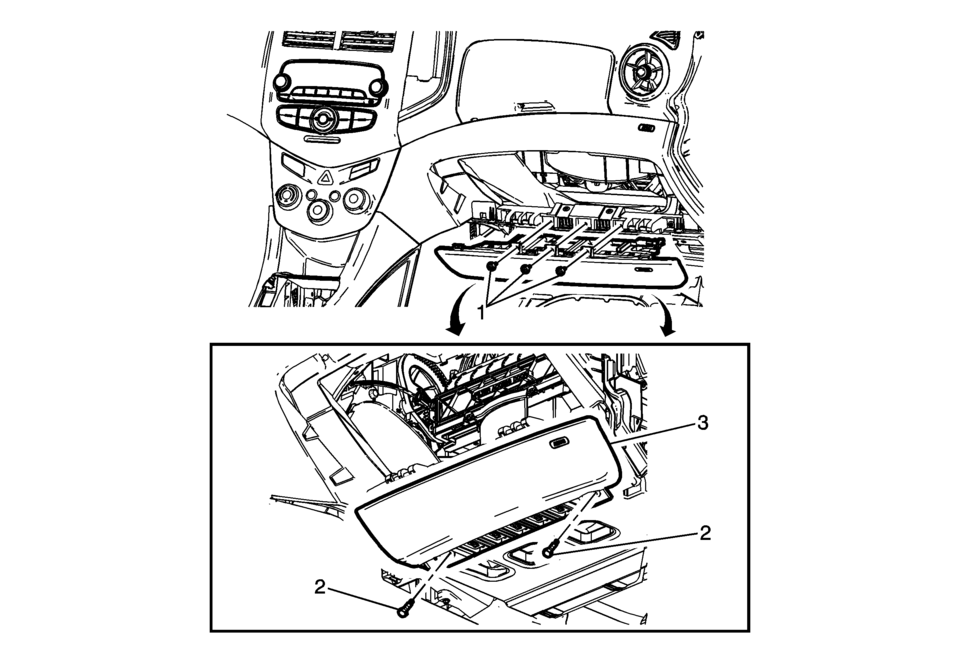

Callout

Component Name

Warning:

Refer to SIR Inflator Module Handling and Storage Warning.

Warning:

Refer to SIR Warning.

Preliminary Procedure

  1. Disable the SIR system. Refer to SIR Disabling and Enabling.
  2. Remove the instrument panel lower compartment. Refer to Instrument Panel Lower Compartment Replacement.

1

Instrument Panel Compartment Reinforcement Fastener (Qty:?€‰3)

Caution:

Refer to Fastener Caution.

2

Instrument Panel Lower Airbag Fastener (Qty:?€‰2)

Tighten


9?€‰Y?€‰(80?€‰lb?€‰in)

3

Inflatable Restraint Instrument Panel Lower Module Replacement ?€“ Passenger Side

Procedure

  1. Refer to Inflatable Restraint Module Handling and Scrapping.
  2. Enable the SIR system. Refer to SIR Disabling and Enabling.
