Chevrolet Sonic Repair Manual: Rear Side Door Opening Floor Carpet Retainer Replacement
|
Callout |
Component Name |
|---|---|
|
Preliminary Procedure
Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation. |
|
|
1 |

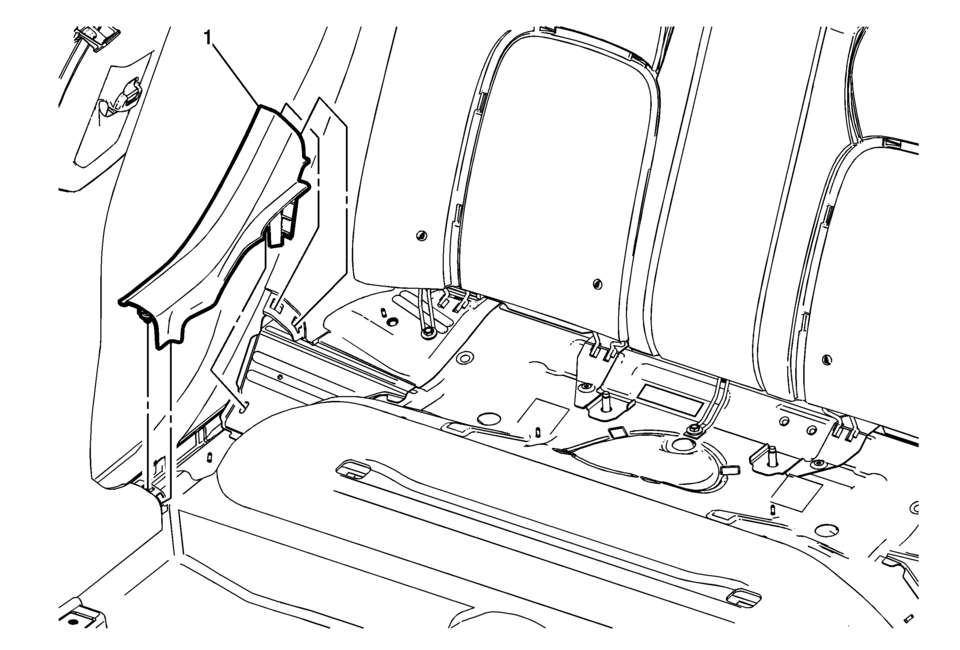

Rear Side Door Opening Floor Carpet Retainer Assembly |
Rear Compartment Floor Panel Carpet Replacement (Sedan)
Rear Compartment Floor Panel Carpet Replacement
Callout
Component Name
1
Rear Compartment Floor Panel Carpet Assembly
...
Grab Handles
...
