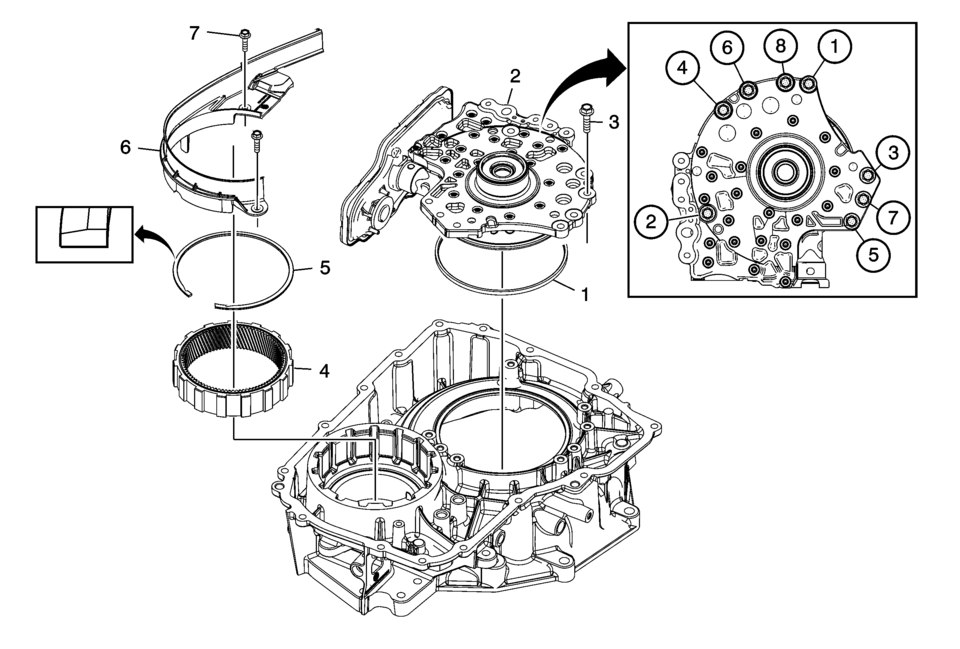

Transmission Fluid Pump, Front Differential Carrier Baffle, and Front Differential Ring Gear Installation

Callout

Component Name

1

Torque Converter and Differential Housing Seal

2

Fluid Pump Assembly

3

Fluid Pump Bolts M8 x 33 (Qty: 8)

Caution:

Refer to Fastener Caution.

Tighten


10 Y (89 lb in) then rotate the bolt an additional 45 degrees

Special Tool

EN-45059 Angle Meter or equivalent

For equivalent regional tools, refer to Special Tools.

4

Front Differential Ring Gear

5

Front Differential Ring Gear Retainer

Note:

Install the retainer with the taper facing away from the ring gear.

6

Front Differential Carrier Baffle

7

Front Differential Carrier Baffle Bolts M6 x 25 (Qty: 2)

Tighten


12 Y (106.21 lb in)

Transmission Fluid Pump, Front Differential Carrier Baffle, and Front Differential Ring Gear Installation (6T30)
Transmission Fluid Pump, Front Differential Carrier Baffle, and Front Differential Ring Gear Installation Callout Component Name ...

Transmission Fluid Pump, Front Differential Carrier Baffle, and Front Differential Ring Gear Removal (6T30)
Transmission Fluid Pump, Front Differential Carrier Baffle, and Front Differential Ring Gear Removal Callout Component Name 1 ...
