Chevrolet Sonic Repair Manual: Air Conditioning (A/C) Refrigerant Pressure Sensor Replacement (1.4L)

Chevrolet Sonic Repair Manual / HVAC / Cooling / Air Conditioning (A/C) Refrigerant Pressure Sensor Replacement (1.4L)

Air Conditioning (A/C) Refrigerant Pressure Sensor Replacement
Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle. Remove the front bumper fascia opening lower cover. Refer to Front Bumper Fascia Opening Lower Cover Replacement.

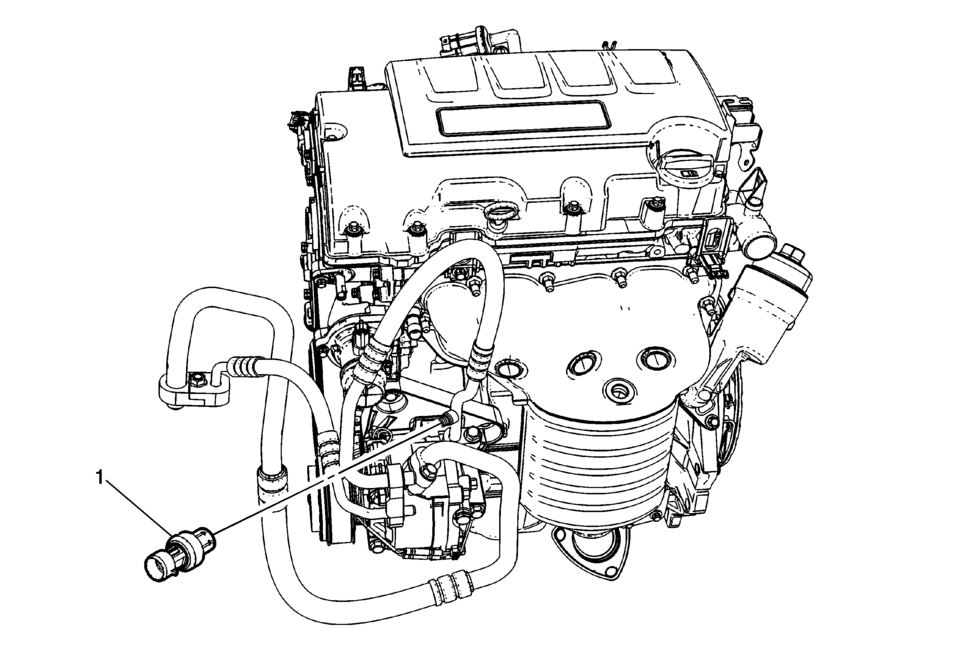

1	Air Conditioning Refrigerant Pressure Sensor Caution: Refer to Fastener Caution. Procedures Disconnect the air conditioning refrigerant pressure sensor connector. Remove and discard the O-ring and replace with NEW. Refer to Air Conditioning O-Ring Seal Replacement. Tighten 6 Y (54 lb in)
