Chevrolet Sonic Repair Manual: Air Conditioning Compressor Bracket Installation

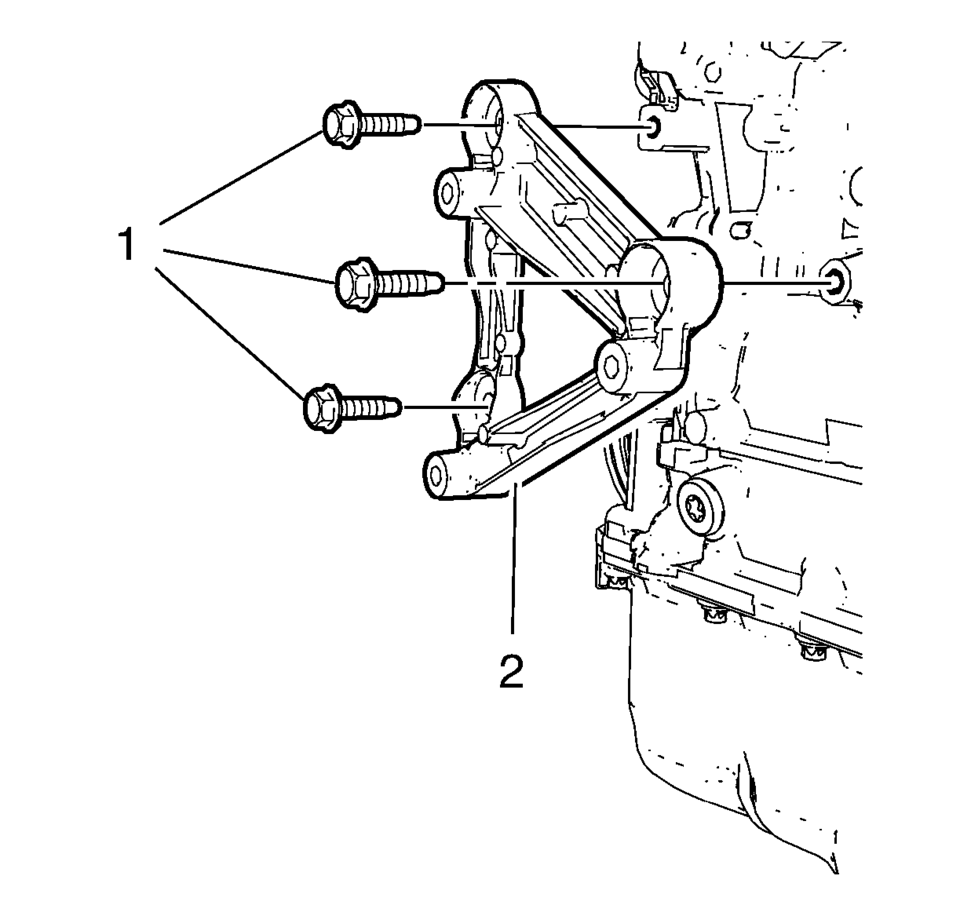

- Install the air conditioning compressor bracket (2).
- Install the 3 air conditioning compressor bracket bolts (1) and tighten
to 22 Y (16 lb ft)
.
Caution:
Refer to Fastener Caution.
Special Tools
Illustration
Tool Number/ Description
BO-38185
J-38185
Hose Clamp Pliers
BO-42220
J-422 ...
Air Conditioning Compressor Bracket Removal
Remove the 3 air conditioning compressor bracket bolts (1).
Remove the air conditioning compressor bracket (2).
...
