Chevrolet Sonic Repair Manual: Air Conditioning Compressor Bracket Removal

Chevrolet Sonic Repair Manual / Powertrain / Engine / General / Air Conditioning Compressor Bracket Removal

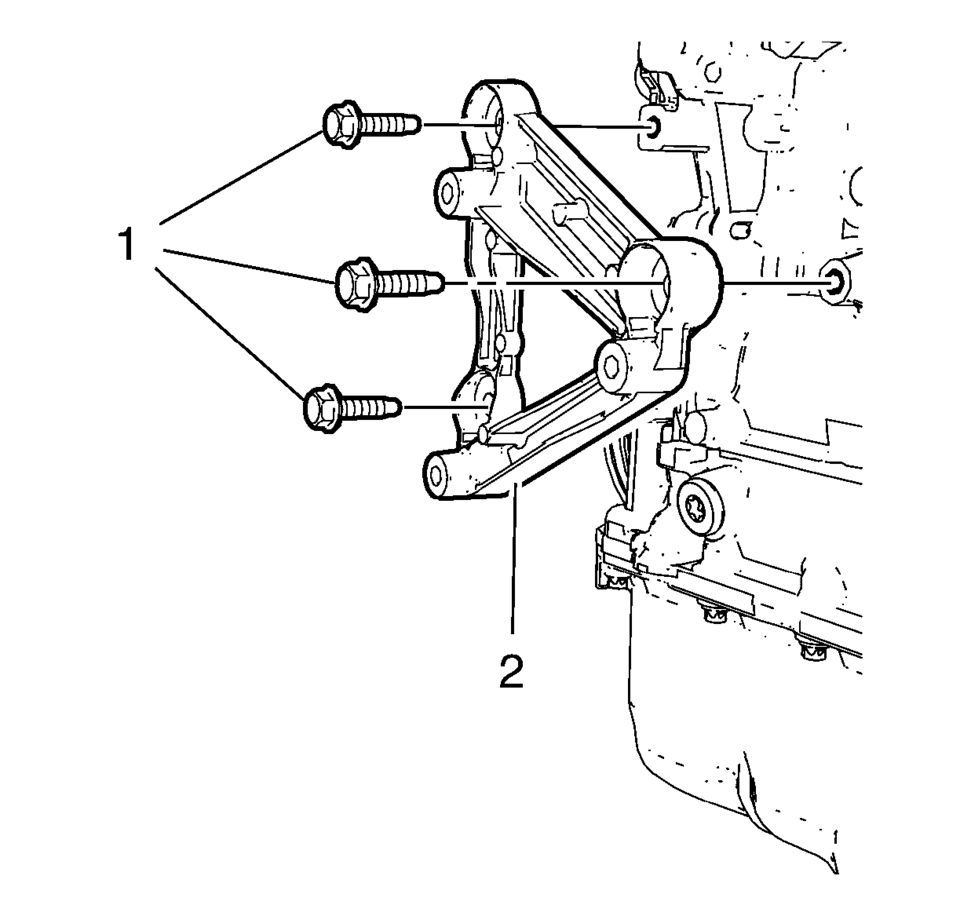

    Remove the 3 air conditioning compressor bracket bolts (1).
  1. Remove the 3 air conditioning compressor bracket bolts (1).
  2. Remove the air conditioning compressor bracket (2).
