Air Inlet Valve Actuator Replacement

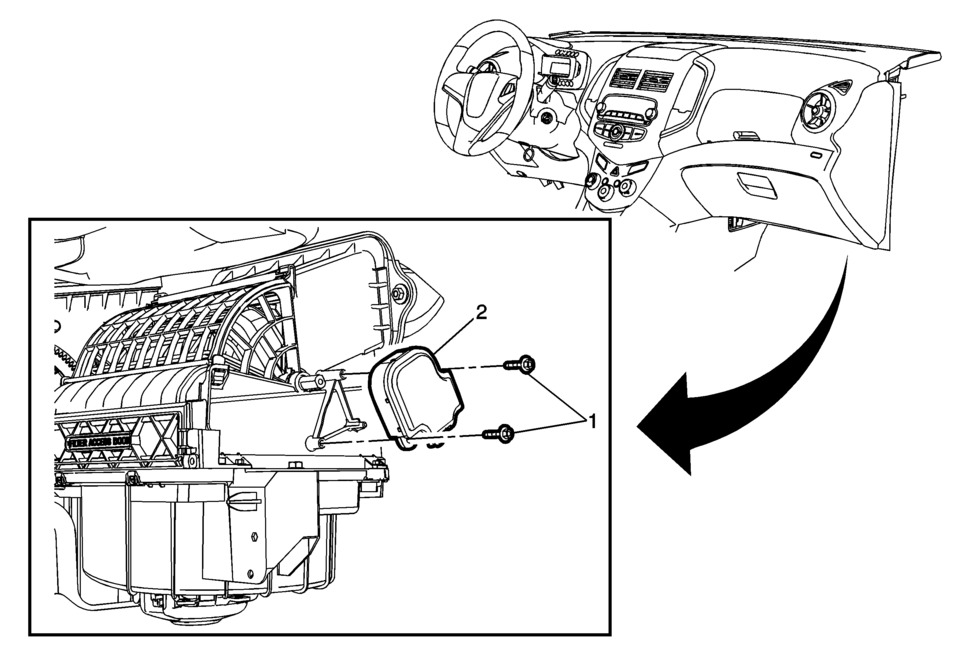

Callout	Component Name
Preliminary Procedures Remove the instrument panel compartment. Refer to Instrument Panel Lower Compartment Replacement. Reposition any wiring or hoses to gain access to air inlet valve actuator.
1	Air Inlet Valve Actuator Screw (Qty: 2) Caution: Refer to Fastener Caution.
2	Air Inlet Valve Actuator

Air Inlet Assembly Replacement

Air Inlet Assembly Replacement Callout Component Name Preliminary Procedures Remove the Heater and Air Conditioning Evaporator and ...

Blower Motor Replacement

Removal Procedure — Production Blower Motor Remove the passenger side instrument panel insulator. Refer to Instrument Panel Insulator Replacement. Remove the passenger side infl ...
