Chevrolet Sonic Repair Manual: Airbag Instrument Panel Module Replacement

Chevrolet Sonic Repair Manual / Body / Body Interior / Dashboard Assembly / Airbag Instrument Panel Module Replacement



Airbag Instrument Panel Module Replacement

Callout

Component Name

Warning:

Refer to SIR Inflator Module Handling and Storage Warning.

Warning:

Refer to SIR Warning.

Preliminary Procedure

  1. Disable the SIR system. Refer to SIR Disabling and Enabling.
  2. Remove the instrument panel upper trim panel assembly ?€“ right side. Refer to Instrument Panel Upper Trim Panel Replacement - Right Side.

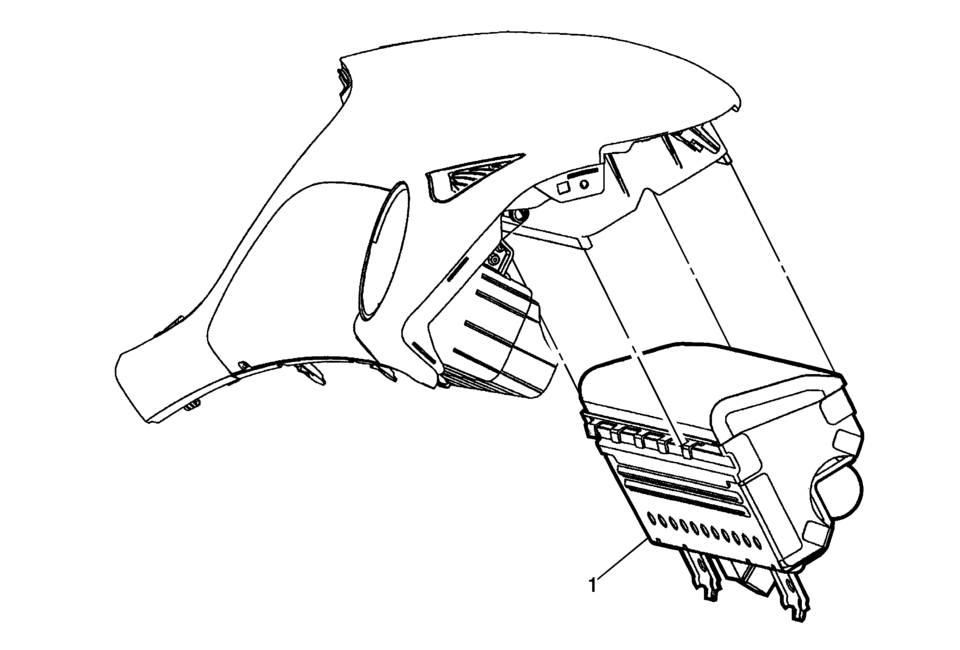

1

Instrument Panel Inflatable Restraint Module Assembly

Procedure

  1. Refer to Inflatable Restraint Module Handling and Scrapping.
  2. Enable the SIR system. Refer to SIR Disabling and Enabling.
