Chevrolet Sonic Repair Manual: Automatic Transmission Range Selector Lever Replacement

Chevrolet Sonic Repair Manual / Powertrain / Transmission/Transaxle / Transmission Oil Cooler / Shifter Input and Linkage / Automatic Transmission Range Selector Lever Replacement

Removal Procedure
  1. Set the park brake and chock the wheels.

  2. Disconnect the transmission range selector lever cable terminal (1) from the transmission manual shift lever pin.
  3. Press the locking tabs inward in order to release the transmission range selector lever cable (2) from the cable bracket.

    4. Warning:

    Hold the transmission range selector lever while removing or installing the lever retaining nut. Failure to hold the lever can cause damage to the transmission internal park system components which could allow the vehicle to roll when placed in the park position.

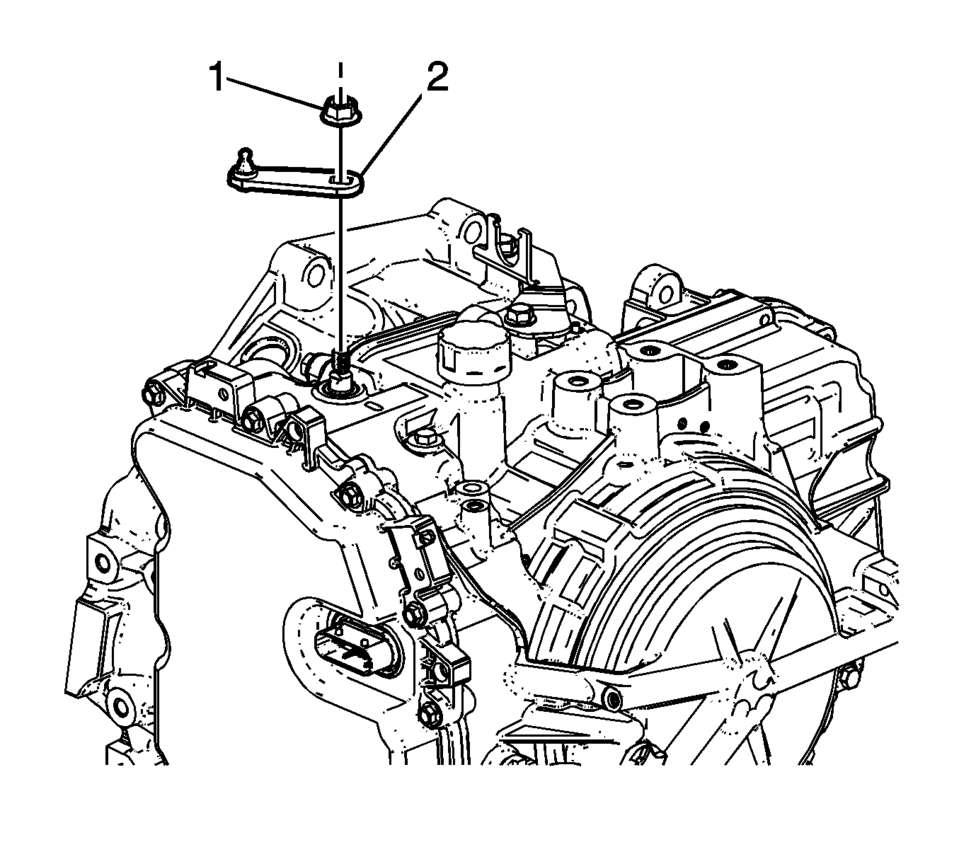

  4. Remove the transmission range selector lever nut (1).
  5. Remove the transmission range selector lever (2).
Installation Procedure


    Warning:

    Hold the transmission range selector lever while removing or installing the lever retaining nut. Failure to hold the lever can cause damage to the transmission internal park system components which could allow the vehicle to roll when placed in the park position.

  1. Install the transmission range selector lever (2).

    2. Caution:

    Refer to Fastener Caution.

  2. Install the transmission range selector lever nut (1) and tighten to 30 Y (22 lb ft)

    .



  3. Install the transmission range selector lever cable (2) to the cable bracket.
  4. Connect the transmission range selector lever cable terminal (1) to the transmission manual shift lever pin.
  5. Check the range selector cable adjustment. Refer to Range Selector Lever Cable Adjustment.
Shifter Input and Linkage
...

Manual Transmission Shift Lever and Selector Lever Cable Adjustment
Remove the floor console. Refer to Front Floor Console Replacement. Lift upward and disengage (do not remove) both cable lock adjusters (1) to release the internal cable asse ...
