Backup Lamp Switch Replacement
Callout	Component Name
Preliminary Procedure Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection. Without draining the coolant or removing the hoses, remove and position aside the radiator surge tank. Refer to Radiator Surge Tank Replacement.

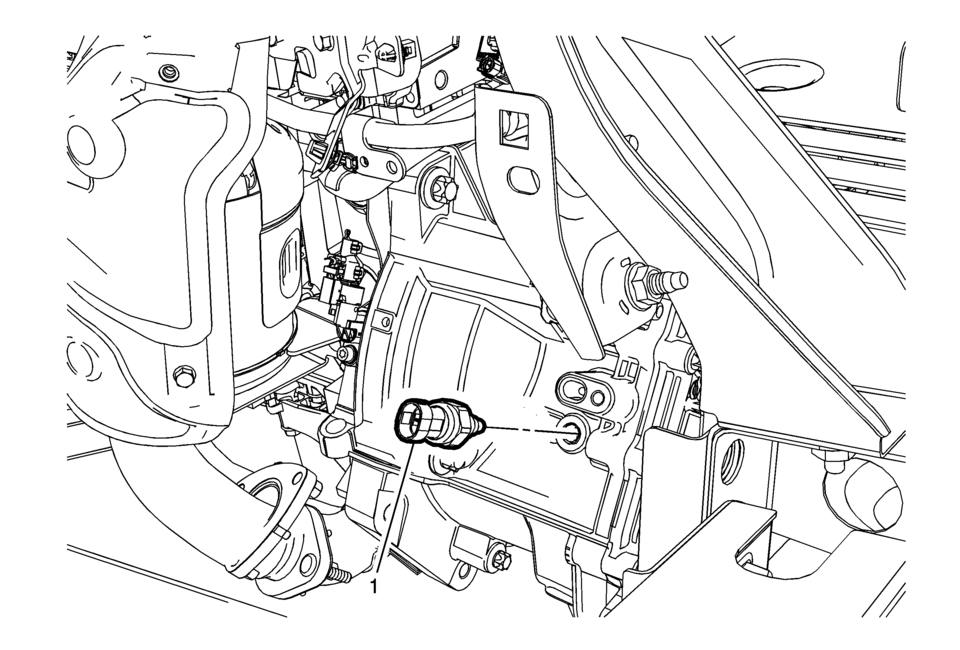

1	Backup Lamp Switch Caution: Refer to Component Fastener Tightening Caution. Procedure Disconnect the electrical connector. Tighten 20 Y (15 lb ft)
2	Backup Lamp Switch Washer Procedure DISCARD the washer and install a NEW washer.
