Chevrolet Sonic Repair Manual: Backup Lamp Switch Replacement



Backup Lamp Switch Replacement

Callout

Component Name

Preliminary Procedure

  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection.
  2. Without draining the coolant or removing the hoses, remove and position aside the radiator surge tank. Refer to Radiator Surge Tank Replacement.

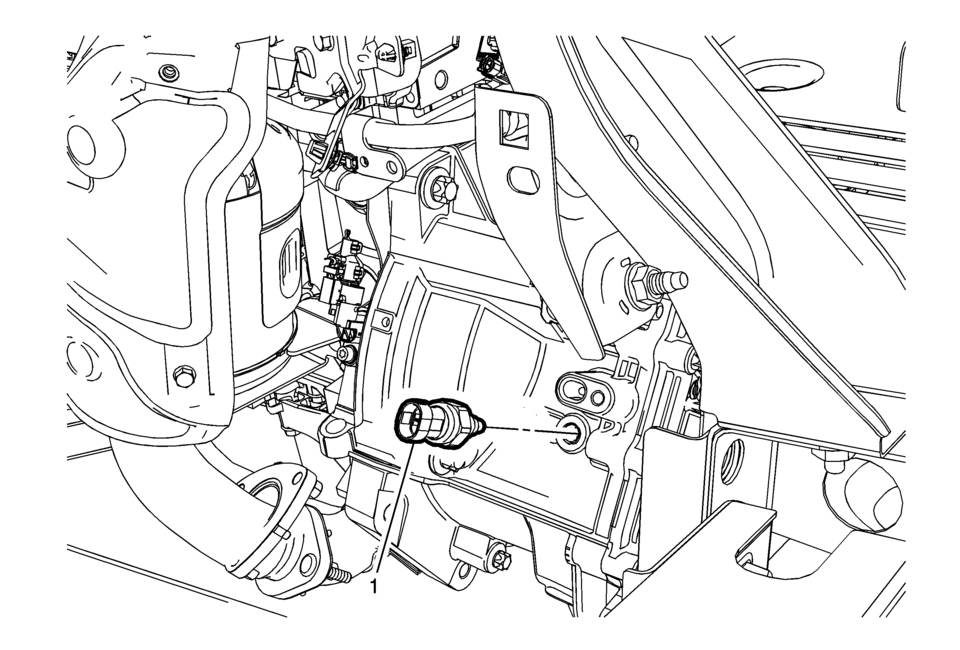

1

Backup Lamp Switch

Caution:

Refer to Component Fastener Tightening Caution.

Procedure

Disconnect the electrical connector.

Tighten


20?€‰Y (15?€‰lb?€‰ft)

2

Backup Lamp Switch Washer

Procedure

DISCARD the washer and install a NEW washer.
