Chevrolet Sonic Repair Manual: Blower Motor Resistor Replacement
|
Callout |
Component Name |
|---|---|
|
Preliminary Procedure
Remove the instrument panel insulator, if equipped. |
|
|
1 |

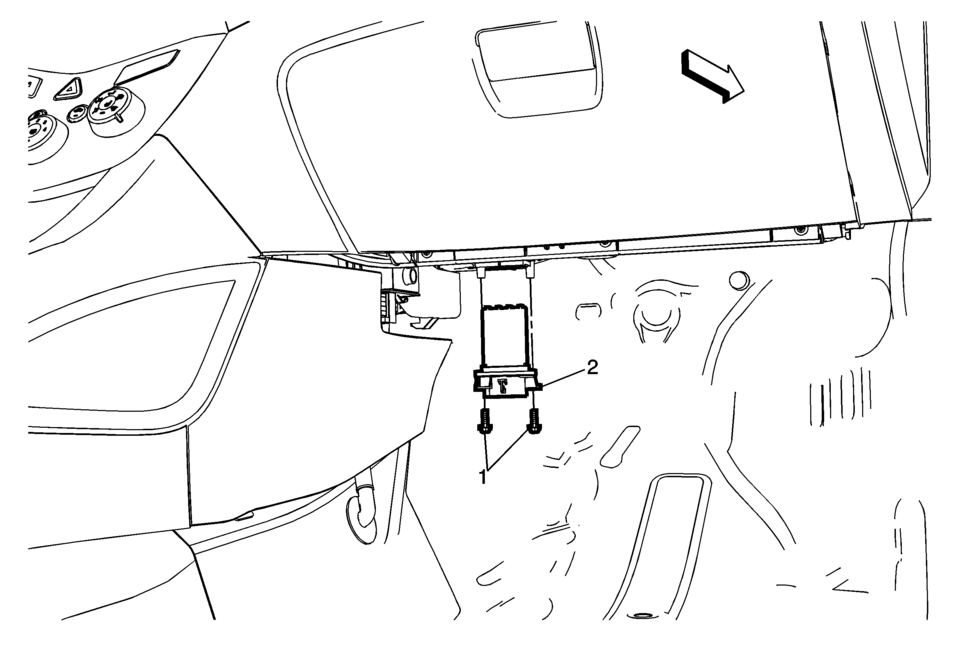

Blower Motor Resistor Screw (Qty: 2) Caution: Refer to Fastener Caution. |
|
2 |
Blower Motor Resistor Procedure
Disconnect the wiring connector. |
Blower Motor Replacement
Removal Procedure — Production Blower Motor
Remove the passenger side instrument panel insulator. Refer to Instrument
Panel Insulator Replacement.
Remove the passenger side infl ...
Floor Air Outlet Duct Replacement - Left Side (LHD)
Floor Air Outlet Duct Replacement - Left Side
Callout
Component Name
Preliminary Procedure
Remove the instrument panel insulator, i ...
