Chevrolet Sonic Repair Manual: Camshaft Cover Installation

Chevrolet Sonic Repair Manual / Powertrain / Engine / Valvetrain / Camshaft / Camshaft Cover Installation

  1. Clean the sealing surfaces.

  2. Note:

    The thickness of the sealing bead should be 2 mm (0.0787 in).

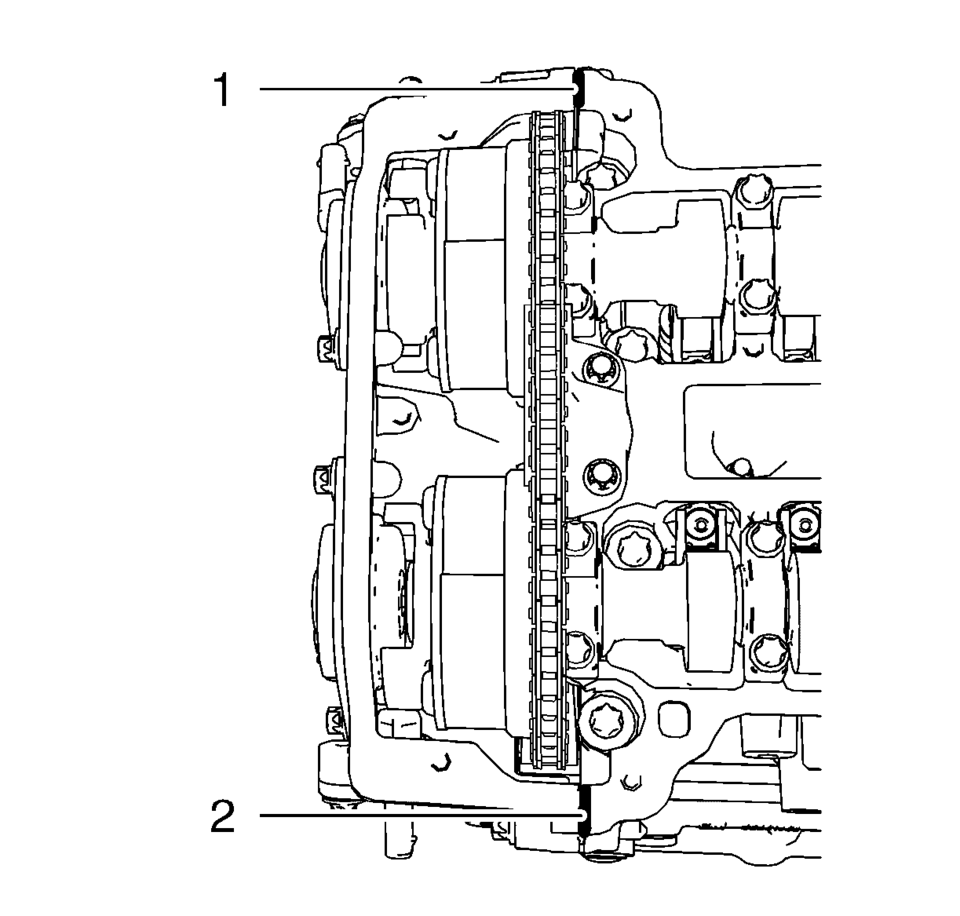

  3. Apply sealing compound to areas (1) and (2). Refer to Adhesives, Fluids, Lubricants, and Sealers.


  4. Note:

    The installation procedure should not take longer than 10 minutes.

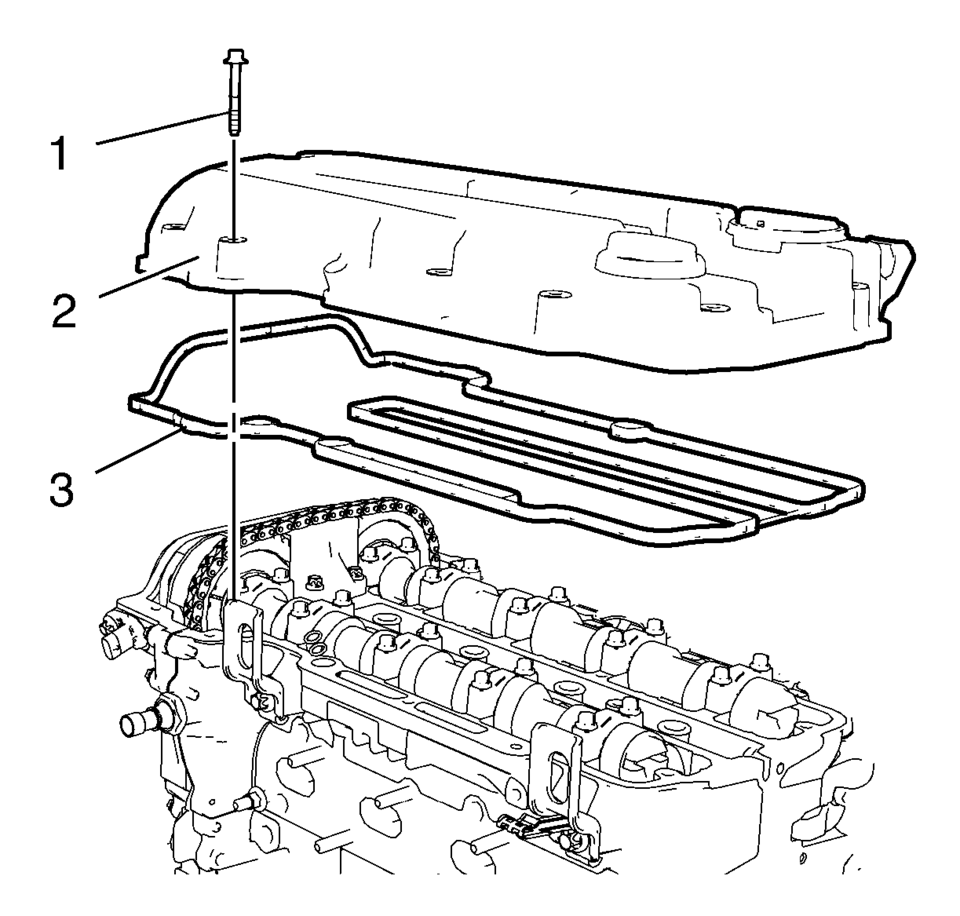

  5. Install the camshaft cover (2) and a NEW gasket (3).
  6. Install the 15 camshaft cover bolts (1).

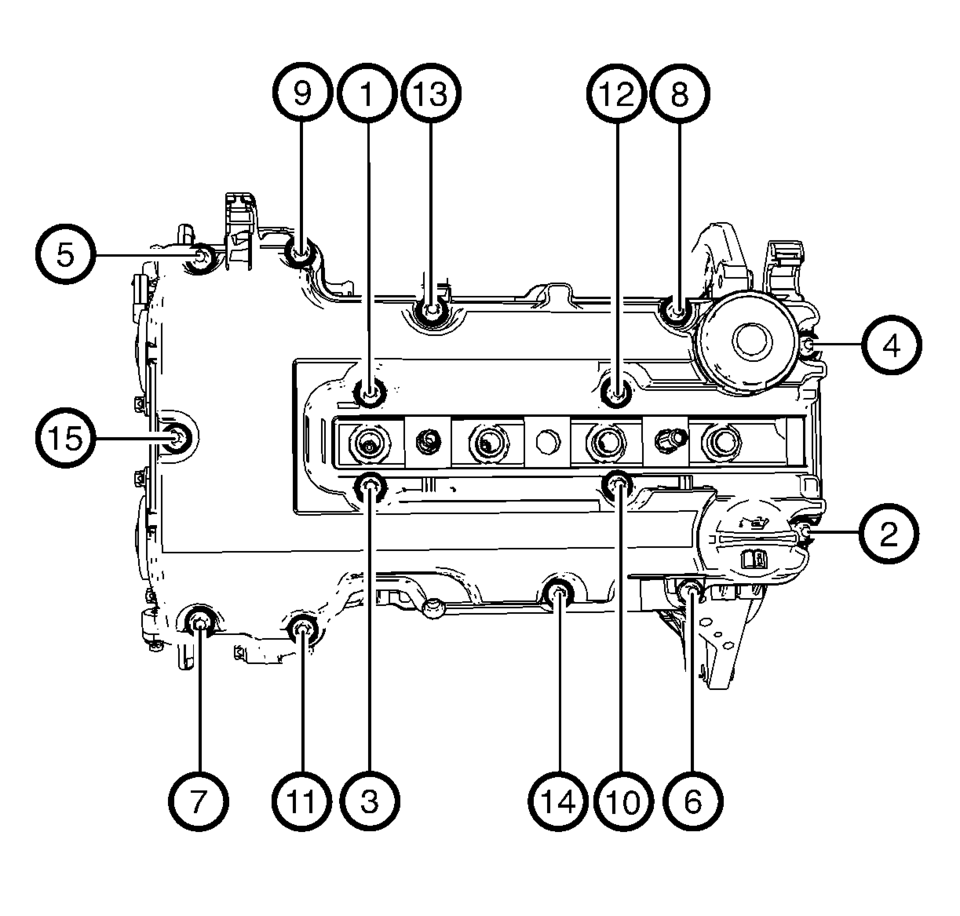

  7. Tighten the 15 camshaft cover bolts in a sequence as shown to  8 Y (71 lb in)

    .

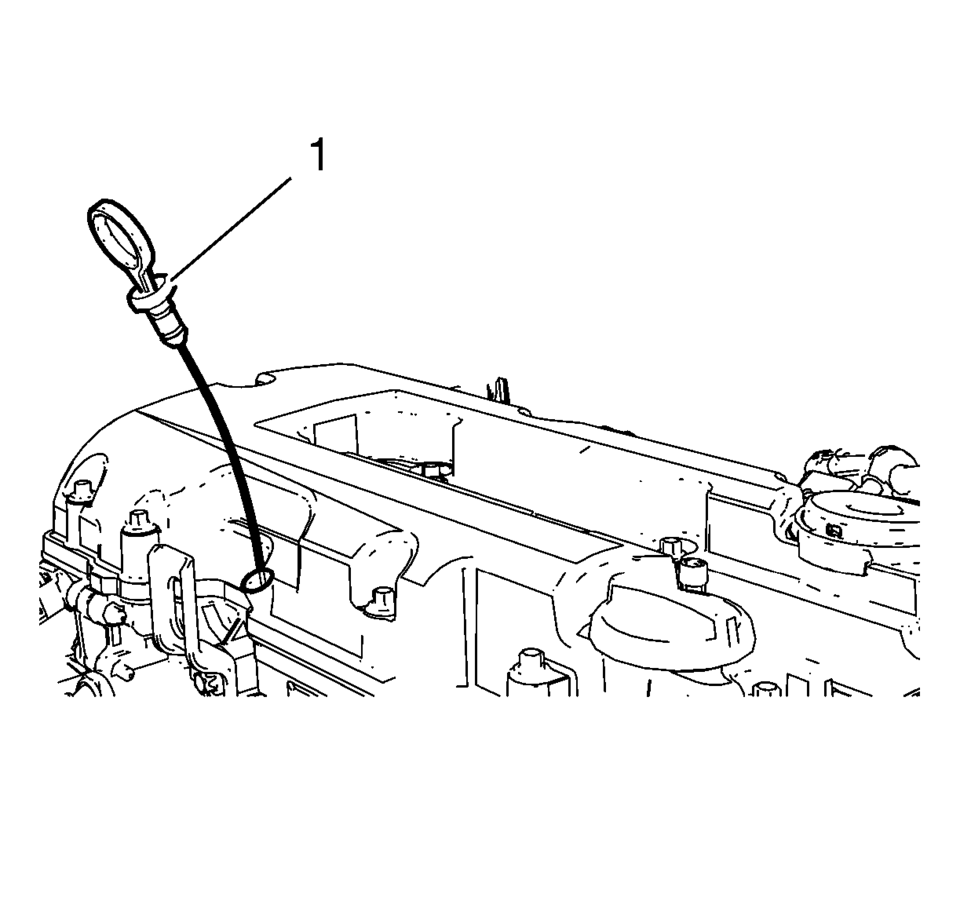

  8. Install the oil level indicator (1).
Camshaft Actuator System Description
Camshaft Actuator System Overview (1) Camshaft Actuator Vane (2) Timing Chain Sprocket (3) Engine Oil Pressure-For retarding ...

Camshaft Cover Removal
Remove the oil level indicator (1). Remove the 15 camshaft cover bolts (1). Remove the camshaft cover (2) and the camshaft cover gasket (3). ...
