Chevrolet Sonic Repair Manual: Cargo Center Courtesy Lamp Bulb Replacement (Sedan)

Chevrolet Sonic Repair Manual / Body / Body Electrical / Lighting / Bulbs / Cargo Center Courtesy Lamp Bulb Replacement (Sedan)

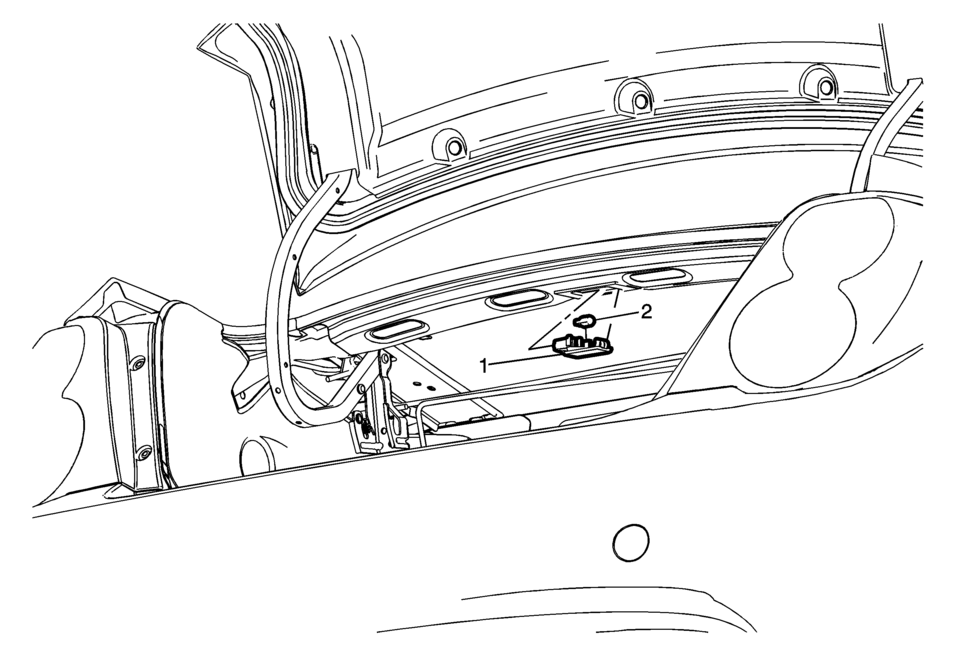

Cargo Center Courtesy Lamp Bulb Replacement

Callout

Component Name

1

Rear Compartment Courtesy Lamp

Refer to Rear Compartment Courtesy Lamp Replacement

2

Cargo Lamp Bulb
