Chevrolet Sonic Repair Manual: Catalytic Converter Heat Shield Replacement (LUV)
|

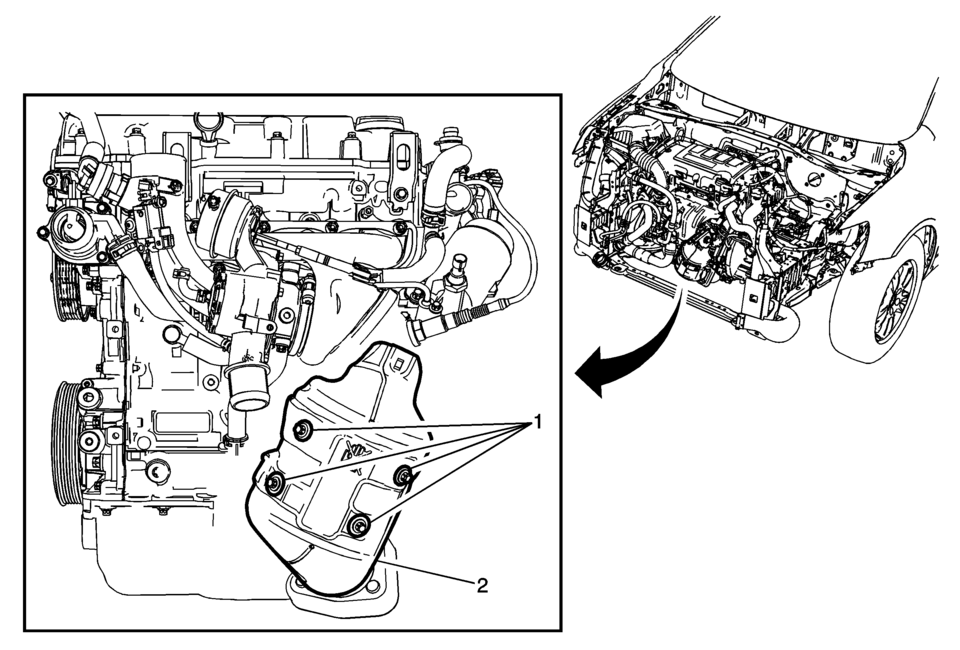

Callout |
Component Name |
|---|---|
|
Warning: Refer to Exhaust Service Warning. |
|
|
1 |
Catalytic Converter Heat Shield Fasteners (Qty: 4) Caution: Refer to Fastener Caution.
9 Y (80 lb in). |
|
2 |
Catalytic Converter Heat Shield |
Catalytic Converter Replacement (LUV)
Removal Procedure
Warning: Refer to Exhaust Service Warning.
Warning: Refer to Protective Goggles and Glove Warning.
Remove the exhaust manifold heat shield. Refer to ...
