Chevrolet Sonic Repair Manual: Communication Interface Module Bracket Replacement
|

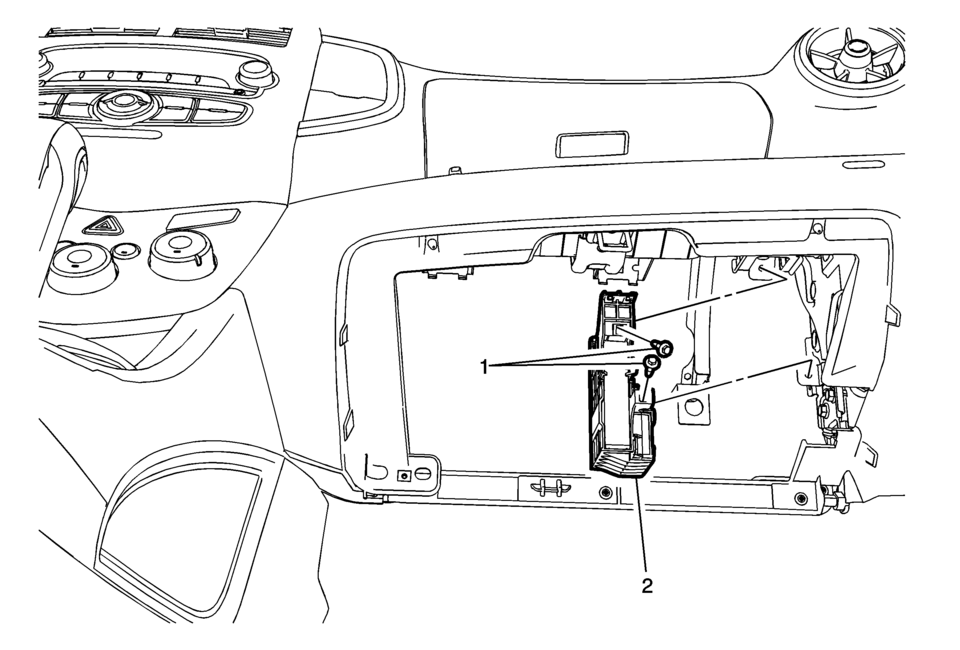

Callout |
Component Name |
|---|---|
|
Preliminary Procedure
Remove the instrument panel lower compartment. Refer to Instrument Panel Lower Compartment Replacement |
|
|
1 |
Communication Interface Module Bracket Bolts (Qty: 2) Caution: Refer to Fastener Caution. |
|
2 |
Communication Interface Module Bracket Procedure
|
