Chevrolet Sonic Repair Manual: Crankshaft Balancer Removal
Special Tools
EN-652 Flywheel Holder
For equivalent regional tools, refer to Special Tools.

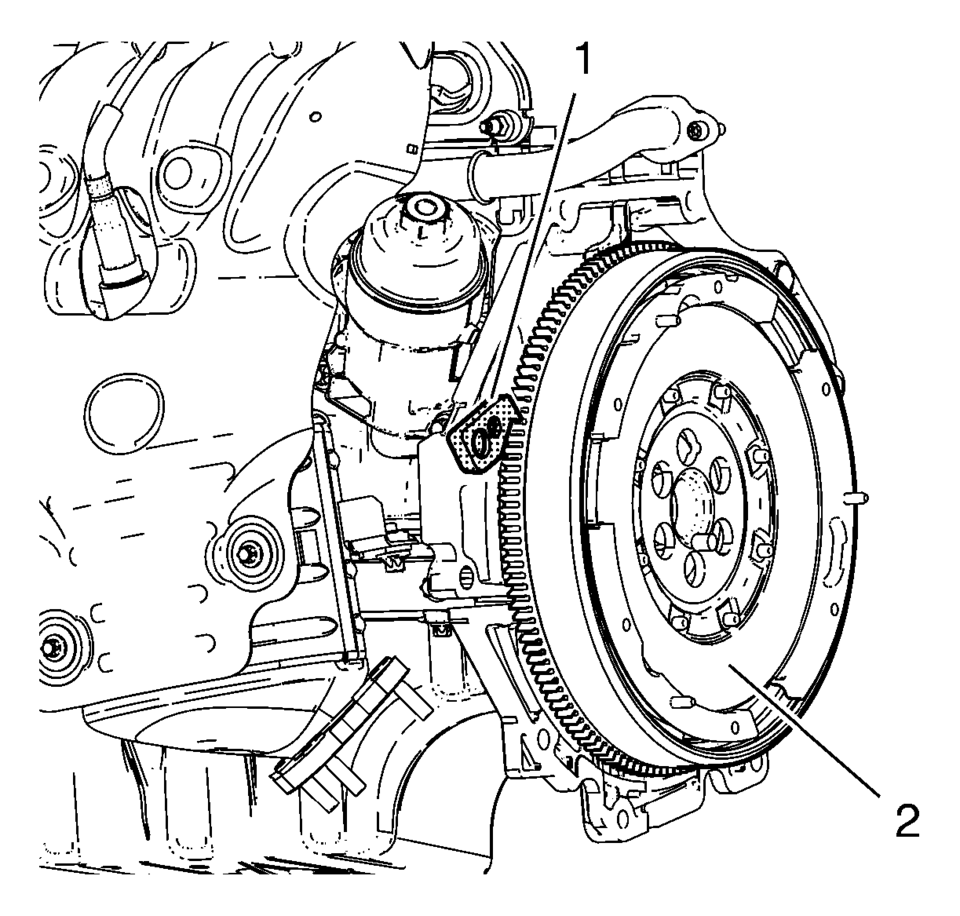

- Install the EN-652 holder (1). Lock the flywheel (2) or the automatic transmission flex plate via the starter ring gear.

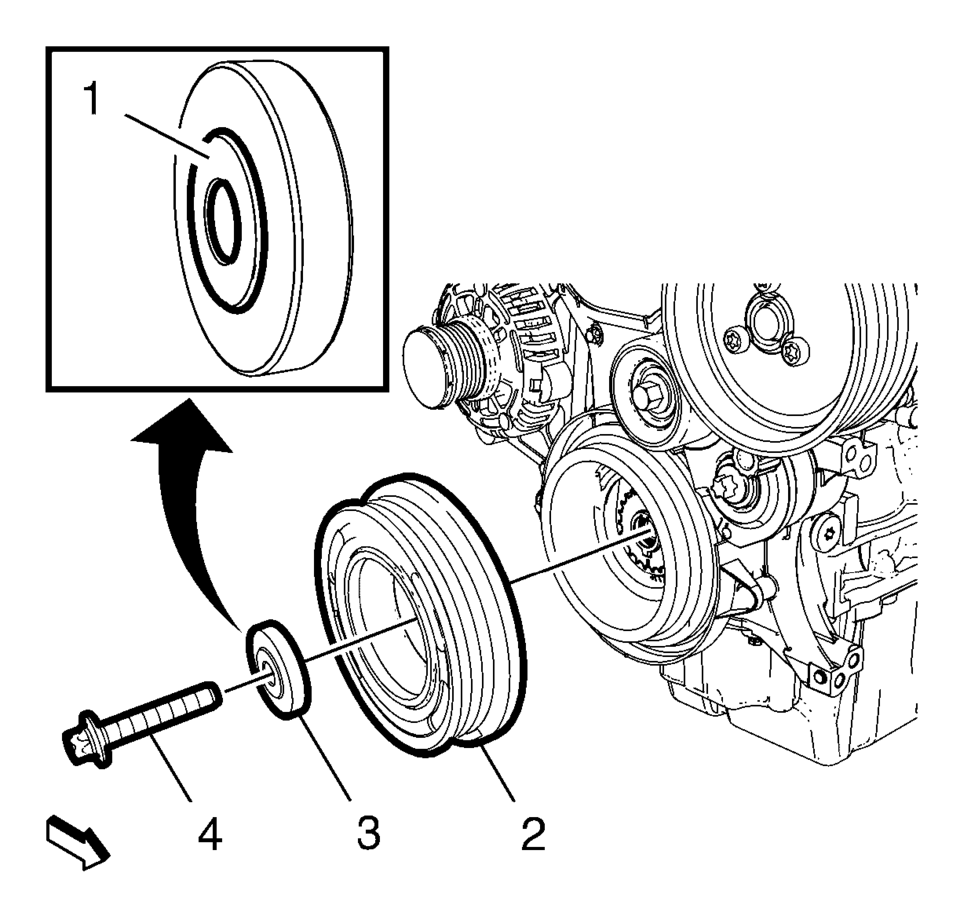

- Remove and DISCARD the crankshaft balancer bolt (4).
- Remove the crankshaft balancer washer (3).
- Remove the crankshaft balancer (2).
Crankshaft Balancer Installation
Special Tools
EN-470–B Angular Torque Wrench
EN-956?E Extension
EN-49979 Crankshaft Shock Mount Retainer
For equivalent regional tools, refer to Special Tools.
Note: The c ...
Crankshaft Balancer Replacement
Special Tools
EN-470–B Angular Torque Wrench
EN-49979 Crankshaft Shock Mount Retainer
For equivalent regional tools, refer to Special Tools.
Removal Procedure
Raise and suppo ...
