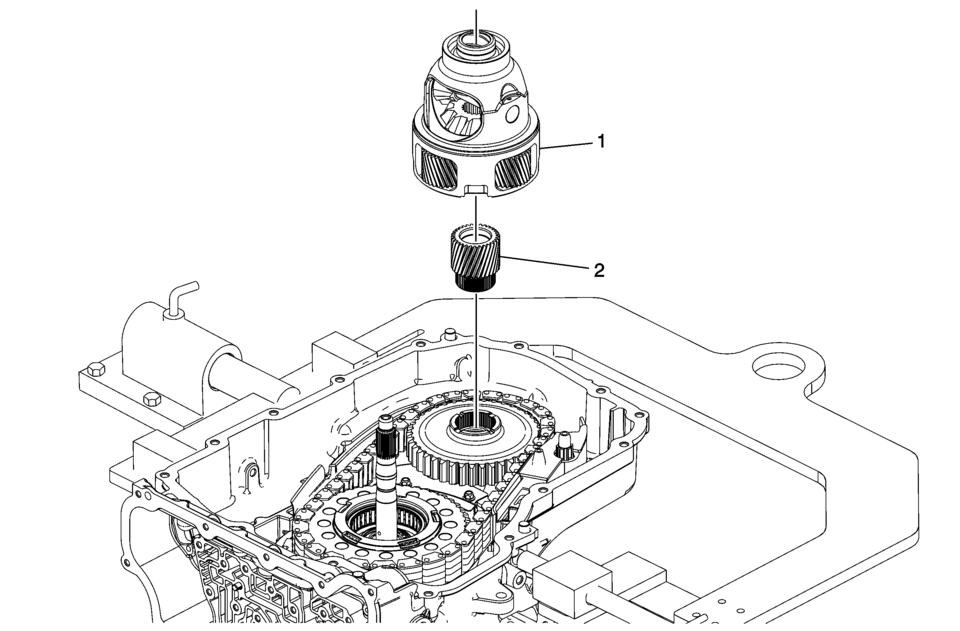

Callout |
Component Name |
|---|---|
|
1 |
Differential Carrier Assembly |
|
2 |
Final Drive Sun Gear |
Definitions and Abbreviations
Differential Carrier Removal (6T40/45/50)Drum Brake Adjusting Hardware Replacement (J93, J94)
Removal Procedure
Warning: Refer to Brake Dust Warning.
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle.
Remove the tire and wheel assembly. Refer to Tire and Wheel Removal
and Installation.
Remove the brake drum. Refer to Brake Drum R ...
Crankshaft Balancer Installation
Special Tools
EN-470–B Angular Torque Wrench
EN-956?E Extension
EN-49979 Crankshaft Shock Mount Retainer
For equivalent regional tools, refer to Special Tools.
Note: The crankshaft balancer flange must fit to the hexagon of
the oil pump rotor (2) and to the two ...
Gears Cleaning and Inspection (Gen 1)
Gears
Warning: Wear safety glasses to avoid injury when using compressed
air or any cleaning solvent. Bodily injury may occur if fumes are inhaled
or if skin is exposed to chemicals.
Clean the following gears in a suitable solvent and
air dry all the p ...
