Callout |
Component Name |
|---|---|
|

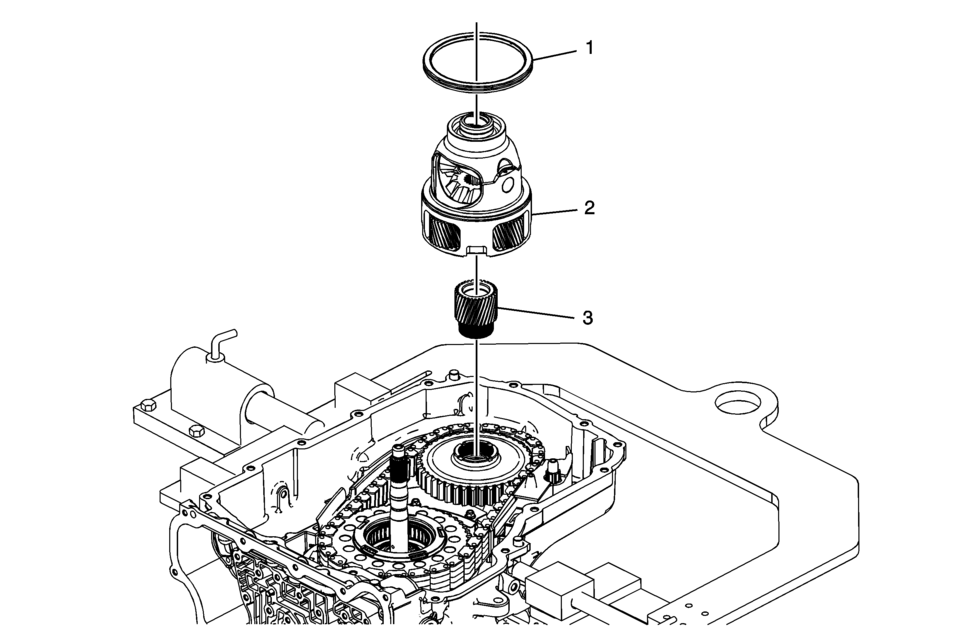

1 |
Front Differential Carrier Bearing Assembly |
|
2 |
Differential Carrier Assembly |
|
3 |
Final Drive Sun Gear |
Differential Carrier Removal (6T30)
Drive Range - Fourth Gear (Gen 1)Liftgate Side Applique Replacement (Hatchback)
Liftgate Side Applique Replacement
Callout
Component Name
Preliminary Procedure
Open and support the rear liftgate assembly.
Remove the liftgate trim finish panel. Refer to Liftgate Trim Finish
Panel Replacement.
Disc ...
Automatic Transmission Shift Lock Control Description and Operation
The automatic transmission park lock control system is a safety device that prevents
an inadvertent shift out of PARK. The driver must press the brake pedal before moving
the park lever out of the PARK position. The system consists of the following components:
The automatic transmission pa ...
Transmission Disassemble (Gen 2)
Special Tools
3-9506289 Universal Adapter
R-0007758 Holding Fixture
S-9407198 Differential Bearing Race Wrench
For equivalent regional tools, refer to Special Tools.
Attach R-0007758 holding fixture (2) to the transmission.
Attach R-0007758 holding fixture (2 ...
