Chevrolet Sonic Repair Manual: Dimensions - Body (4NB)

Chevrolet Sonic Repair Manual / Body / General / Dimensions - Body (4NB)

Point-to-point measurements are for reference only. All measurements are given in millimeters. Use these measurements for diagnosing and estimating. Point-to-point measurements are duplicated with tram bar pointers set at equal lengths. All die marks, holes, slots, and fasteners are measured to the center. All dimensions are symmetrical unless otherwise specified.

Point-to-Point Measurements

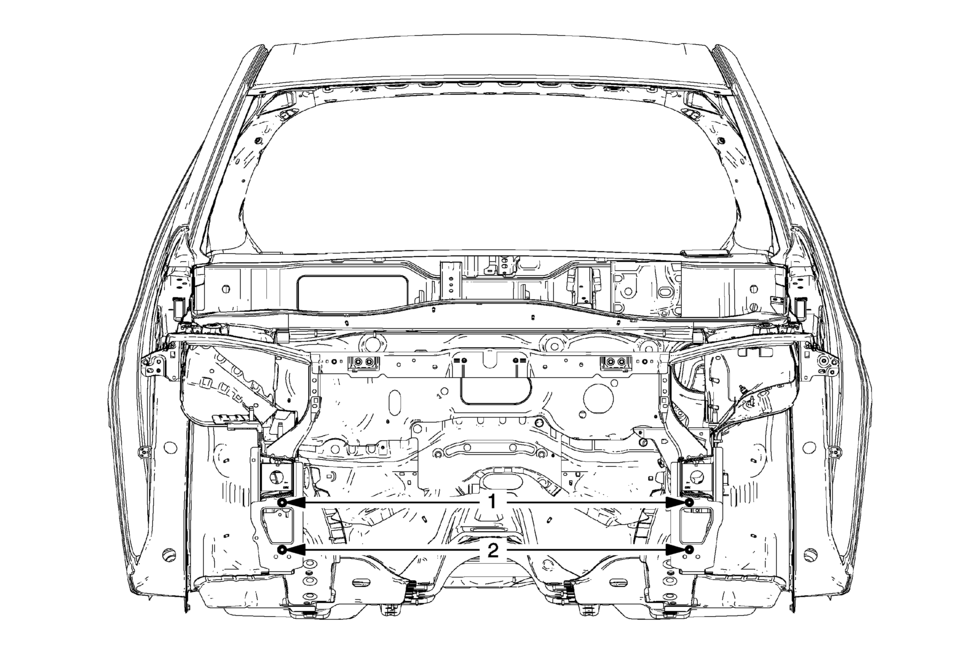

Front End

__ez\c__l--.:_..:
(1) 926?€‰mm
(2) 926?€‰mm

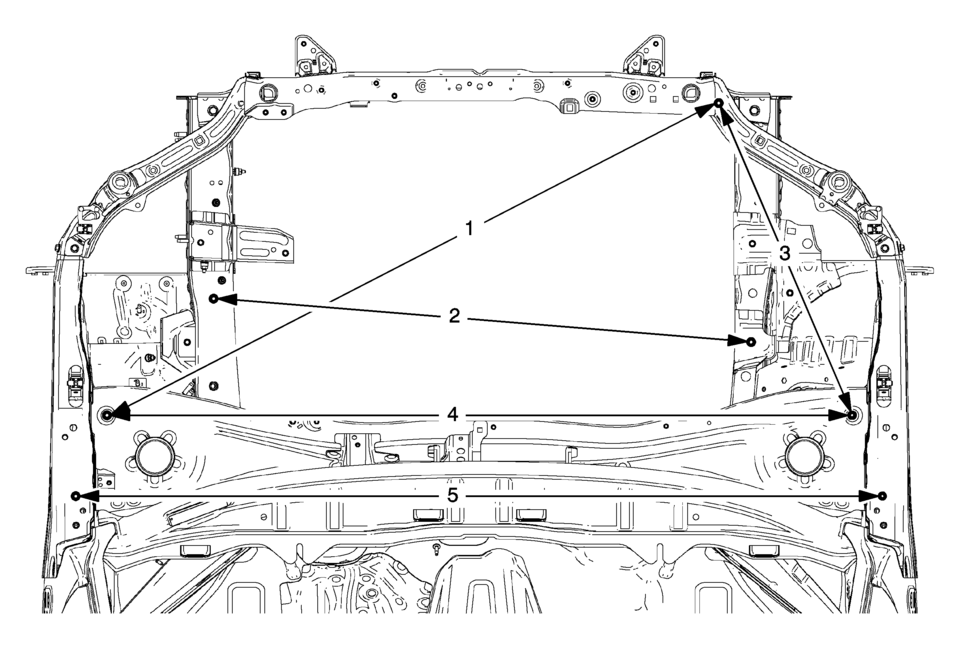

Engine Compartment


(1) 1201?€‰mm
(2) 944?€‰mm
(3) 599?€‰mm
(4) 1300?€‰mm
(5) 1409?€‰mm

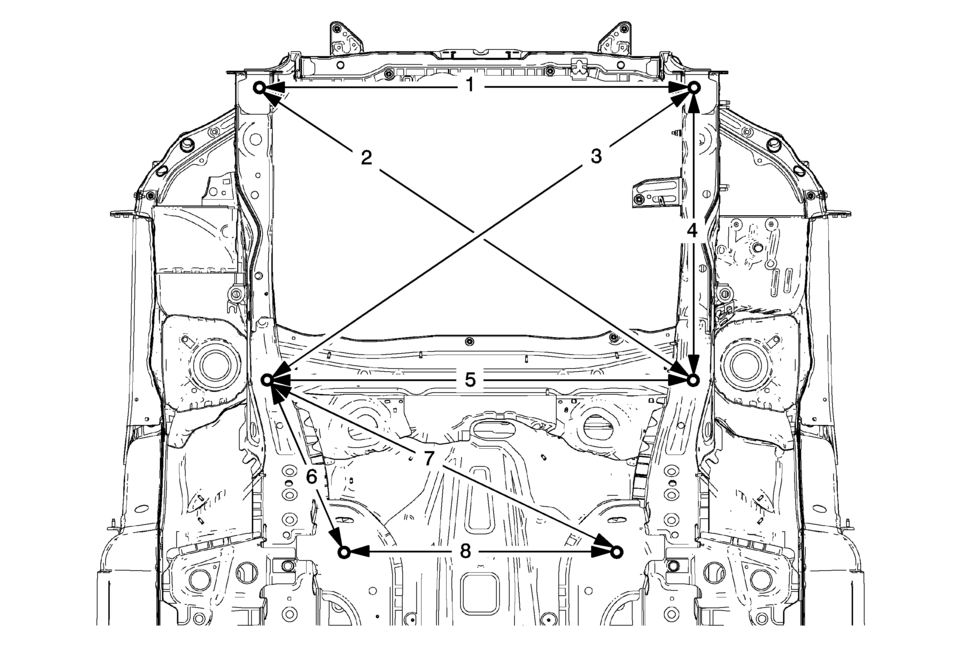

Front End Lower


(1) 928?€‰mm
(2) 1122?€‰mm
(3) 1110?€‰mm
(4) 633?€‰mm
(5) 910?€‰mm
(6) 440?€‰mm
(7) 852?€‰mm
(8) 584?€‰mm
Rear End Lower

ii
(1) 1233?€‰mm
(2) 1259?€‰mm
(3) 627?€‰mm
(4) 966?€‰mm
(5) 1035?€‰mm
(6) 1504?€‰mm
(7) 1052?€‰mm
(8) 417?€‰mm
(9) 965?€‰mm

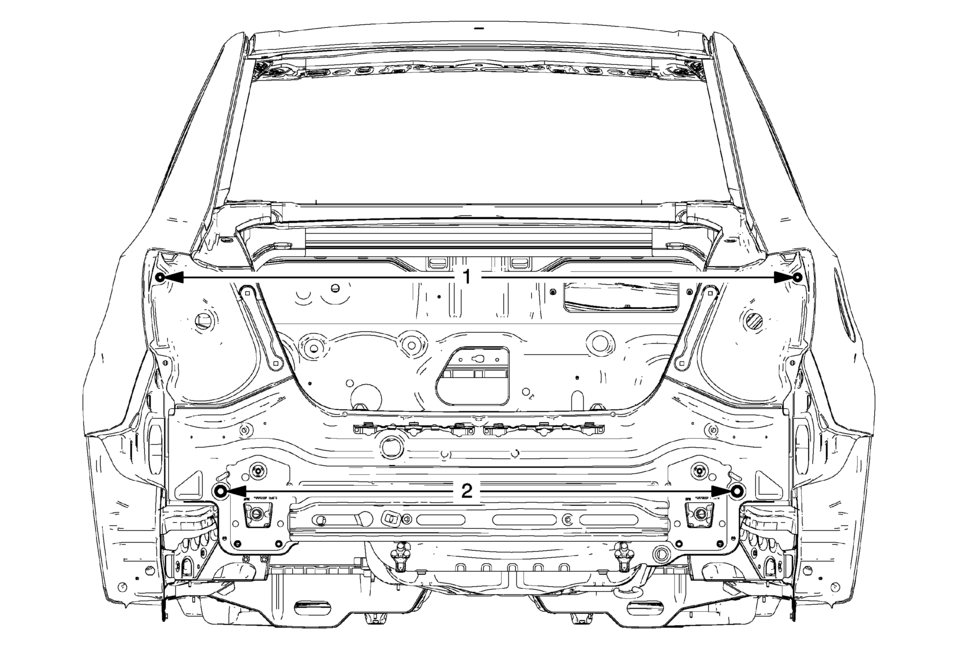

Rear End

..\..1/
(1) 1396?€‰mm
(2) 1130?€‰mm

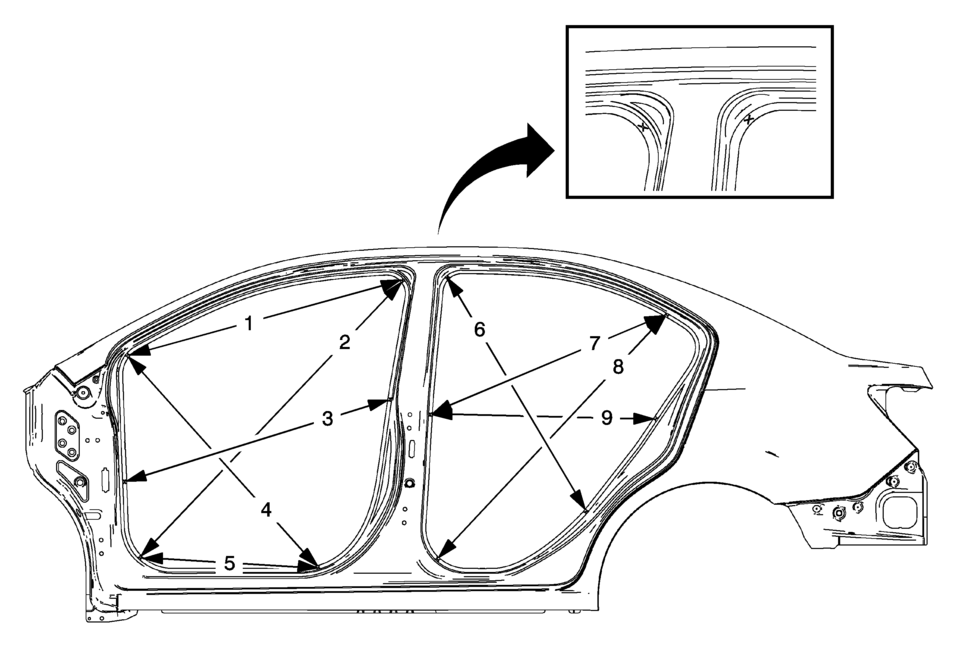

Side


(1) 985?€‰mm
(2) 1319?€‰mm
(3) 955?€‰mm
(4) 981?€‰mm
(5) 611?€‰mm
(6) 946?€‰mm
(7) 886?€‰mm
(8) 1155?€‰mm
(9) 776?€‰mm
