Caution

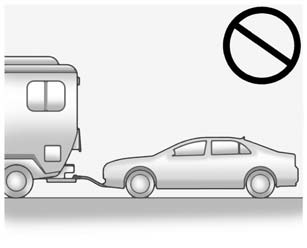

If the vehicle is towed with all four wheels on the ground, the drivetrain components could be damaged. The repairs would not be covered by the vehicle warranty. Do not tow the vehicle with all four wheels on the ground.
The vehicle was not designed to be towed with all four wheels on the ground. If the vehicle must be towed, a dolly should be used. See “Dolly Towing” that follows for more information.
Headlamp Bracket Replacement
Headlamp Bracket Replacement
Callout
Component Name
Preliminary Procedure
Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement.
1
Headlamp Bracket Screw (Qty:?€‰4)
...
Tire Inspection
We recommend that the tires, including the spare tire, if the vehicle has
one, be inspected for signs of wear or damage at least once a month.
Replace the tire if:
The indicators at three or more places around the tire can be seen.
There is cord or fabric showing through the tire's ...
Intake Manifold Disassemble (1.6L LDE)
Remove the intake manifold absolute pressure sensor bolt.
Remove the manifold absolute pressure sensor (1) from the intake manifold (2).
Remove the intake manifold mount (2) from the intake manifold (1).
Remove the throttle body seal (1). ...
