Chevrolet Sonic Owner's Manual: Dome Lamps

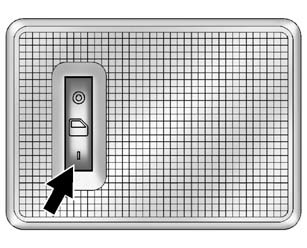

The dome lamp controls are in the headliner above the rear seats.
(Dome Lamp Override): Press to turn
the lamps off, even when a door is open.
(Door): When the button is returned
to the middle position, the lamps turn on automatically when a door is opened.
| (On): Press to turn on the dome lamps.
Courtesy Lamps
The courtesy lamps come on automatically when any door is opened and the dome
lamp is in the door position. ...
Reading Lamps
For vehicles with front reading lamps, they are in the overhead console.
or
(Reading Lamps): Press to turn each
lamp on or off. ...
