Callout |
Component Name |
|---|---|
|
Preliminary Procedure
Remove the heater and air conditioning control. Refer to Heater and Air Conditioning Control Replacement. |
|
|
1 |

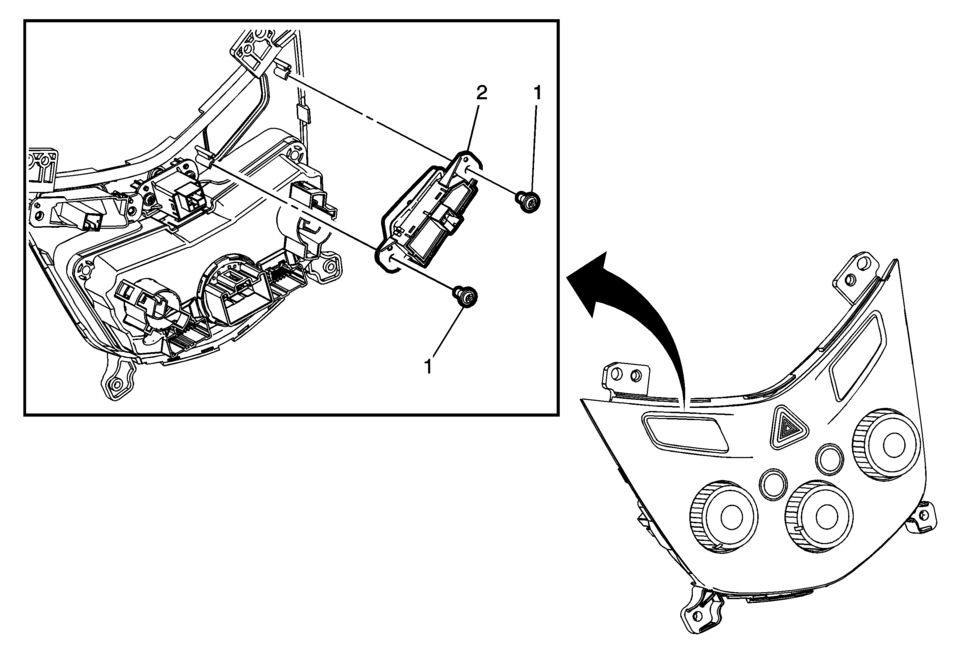

Door Lock Switch Bolts (Qty: 2) Caution: Refer to Fastener Caution. |
|
2 |
Door Lock Switch Procedure
Disconnect the electrical connector. |
Locks
Door Lock and Ignition Lock Folding Key Blade Removal and InstallationFront Side Door Lock Cylinder Coding (Non Free Wheeling)
The door lock cylinder uses 8 of the 8?€‰cut positions. The tumbler positions
are staggered from side to side, 4 on one side and 4 on the other, are not self-retaining,
and are not snap in.
Note: All lock cylinders for side milled keys have right and left
tumblers. The locat ...
Rear Wheel Speed Sensor Replacement
Removal Procedure
Warning: Refer to Brake Dust Warning.
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle.
Remove the tire and wheel assembly. Refer to Tire and Wheel Removal
and Installation.
Remove the rear wheel speed sensor ...
Camshaft Timing Chain Adjustment
Special Tools
EN-952 Fixing Pin
EN-953–A Fixing Tool
EN-49977?E00 Fixation Sensor Discs
For equivalent regional tools, refer to Special Tools.
Remove the ignition coil. Refer to Ignition Coil Replacement.
Remove the camshaft cover. Refer to Camshaft Cover Replacement.
Remove ...
