Chevrolet Sonic Repair Manual: Drive Belt Tensioner Removal

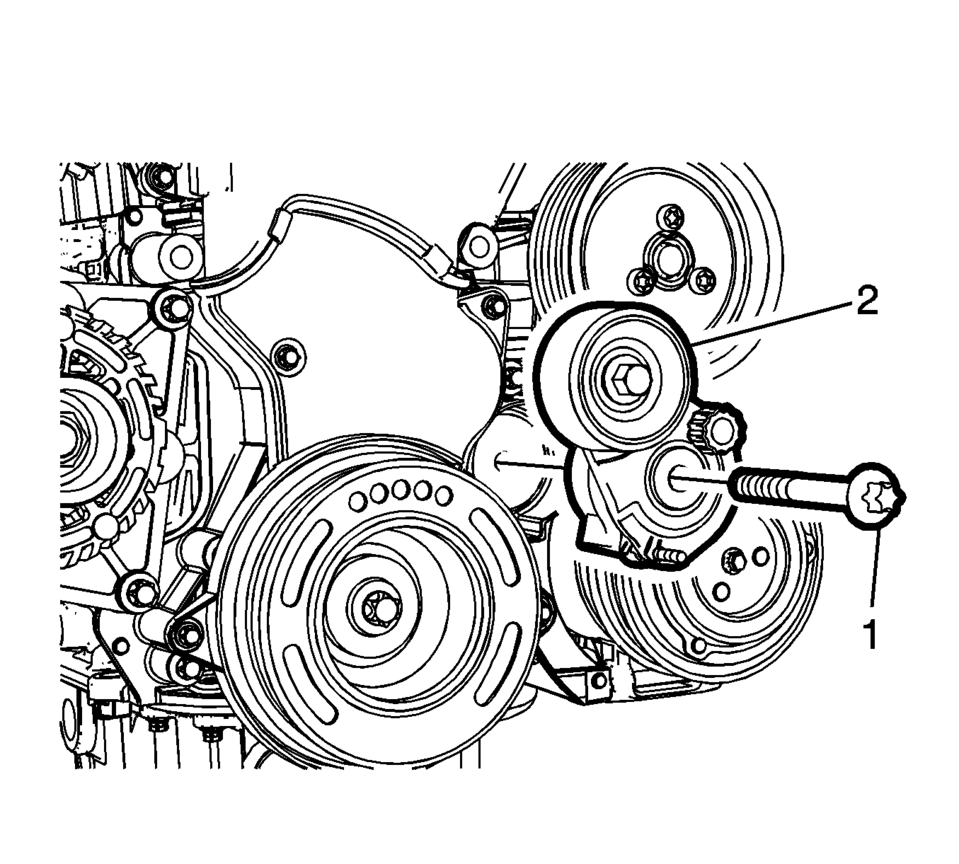

    Remove the drive belt tensioner bolt (1).
  1. Remove the drive belt tensioner bolt (1).
  2. Remove the drive belt tensioner (2).
Drive Belt Tensioner Installation
Install the drive belt tensioner (1). Install the upper drive belt tensioner bolt (2). Install the lower drive belt tensioner bolt (3). Caution: Refer to Fastene ...

Drive Belt Tensioner Replacement
Special Tools EN-955 Locking Pin EN-48488 Holding Wrench For equivalent regional tools, refer to Special Tools. Removal Procedure Remove the right front wheelhouse liner extens ...
