Callout |
Component Name |
---|---|
Warning: Refer to SIR Warning.
|
|

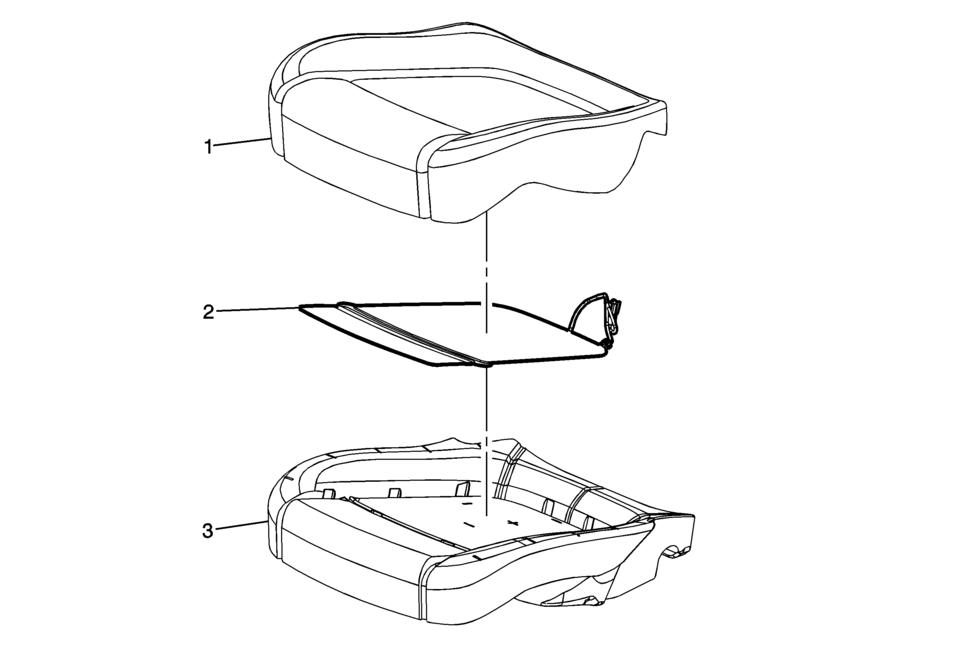

1 |
Front Seat Cushion Cover Procedure
Separate the seat cushion from the seat cushion pad by pulling the cover away from the pad. |
2 |
Front Seat Cushion Heater Procedure
The heater is retained to the pad with adhesive, carefully peel the heater from the seat cushion pad to remove. |
3 |
Front Seat Cushion Pad Note: The seat belt presence sensor and heat mat, if equipped are integral parts of the seat cushion pad. |
Instrument Cluster Upper Bezel Replacement
Instrument Cluster Upper Bezel Replacement
Callout
Component Name
1
Instrument Panel Cluster Upper Bezel
Procedures
Use a flat bladed plastic trim tool in order to disengage the retainers
securing the instrume ...
Heater Outlet Hose Replacement (LUV)
Heater Outlet Hose Replacement
Callout
Component Name
Preliminary Procedures
Drain the engine coolant. Refer to Cooling System Draining and Filling.
Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacemen ...
Wheel Drive Shaft Inner Joint Inspection
Inspection Procedure
Remove the front wheel drive shaft inner joint and boot. Refer to Front
Wheel Drive Shaft Replacement.
Remove the wheel drive shaft tripod bushing (1) from the tripod housing (3).
Remove the wheel drive shaft tripod housi ...
