Chevrolet Sonic Repair Manual: Drivetrain and Front Suspension Frame Skid Plate Replacement

Chevrolet Sonic Repair Manual / Body / Body Exterior / Information / Drivetrain and Front Suspension Frame Skid Plate Replacement

Removal Procedure
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle.

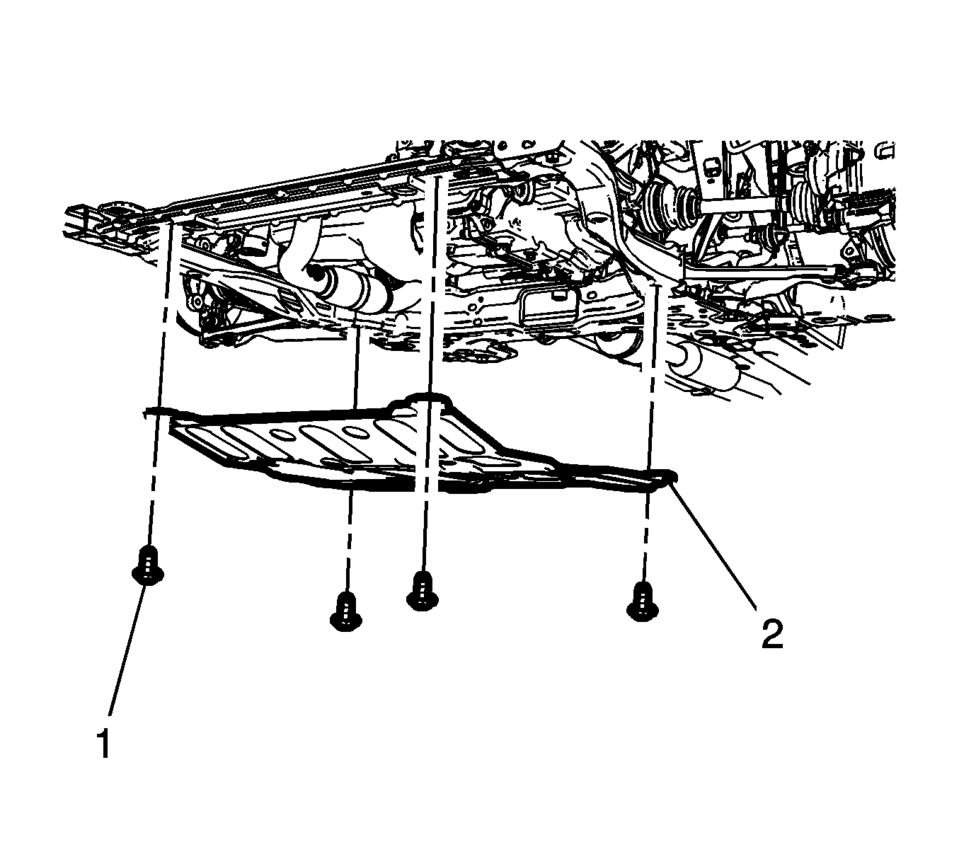

  2. Remove the mounting bolts?€‰(1) for the front suspension frame skid plate.
  3. Remove the front suspension frame skid plate?€‰(2).
Installation Procedure

    Position the front suspension frame skid plate?€‰(2) on the frame.
  1. Position the front suspension frame skid plate?€‰(2) on the frame.
  2. Caution:

    Refer to Fastener Caution.

  3. Install the front suspension frame skid plate mounting bolts?€‰(2) and tighten to 22?€‰Y (16?€‰lb?€‰ft)

    .
