Chevrolet Sonic Owner's Manual: Engine Compartment Fuse Block

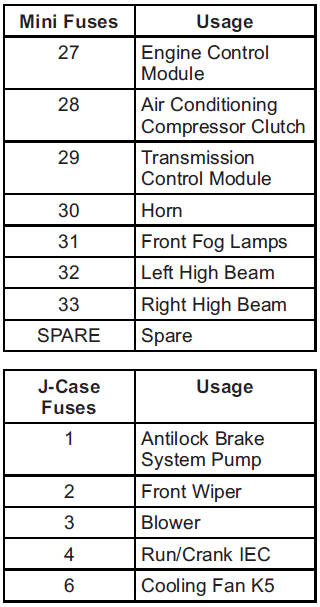

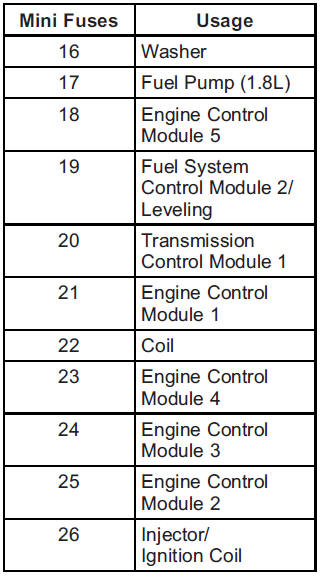

LUV and LUW Engines

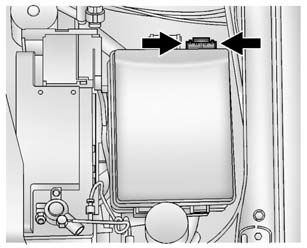

The engine compartment fuse block is on the driver side of the vehicle, near


The engine compartment fuse block is on the driver side of the vehicle, near the battery.

Caution

Spilling liquid on any electrical component on the vehicle may damage it. Always keep the covers on any electrical component.

To access the fuses, press the clips together, and lift the cover. To reinstall the cover, push the cover until it is secure.

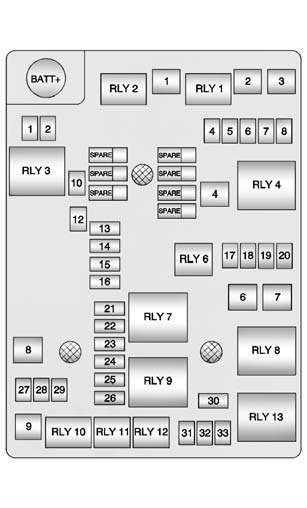

The vehicle may not be equipped with all of the fuses, relays, and features shown.


The vehicle may not be equipped with all of the fuses, relays, and features shown.

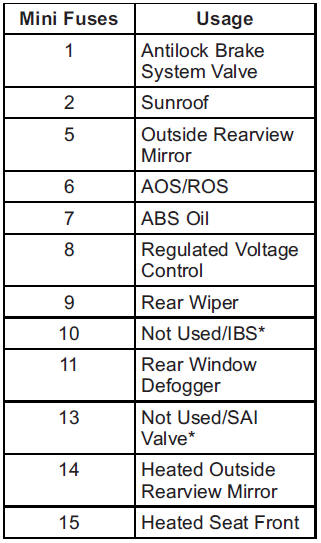

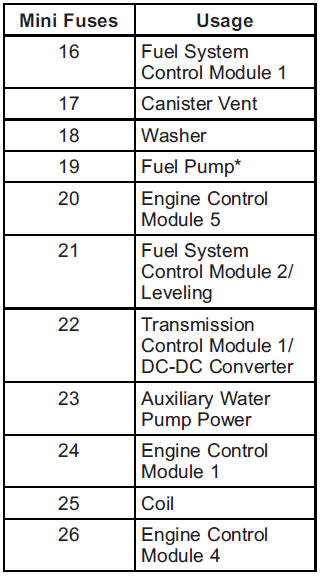

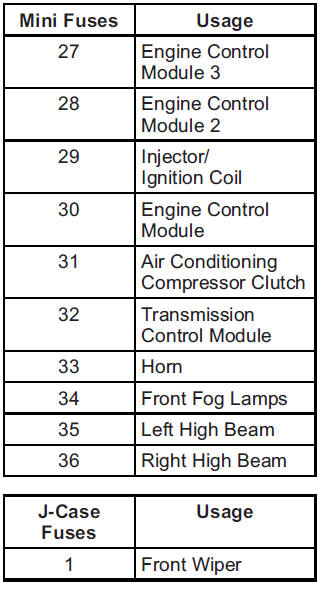

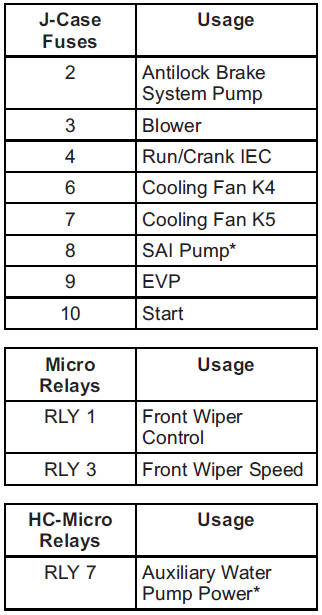

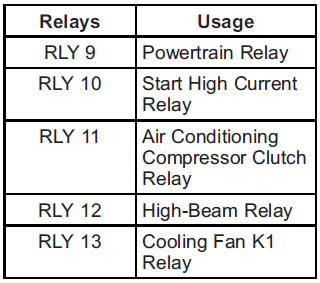

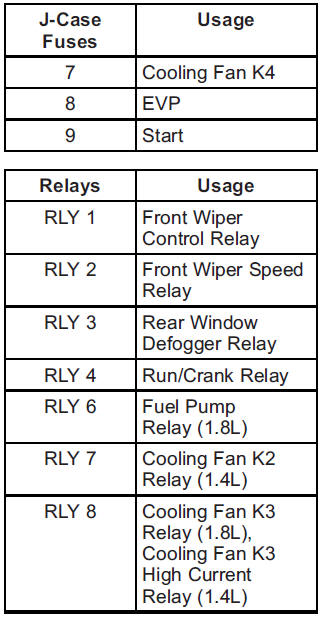

LWE Engine


LWE Engine

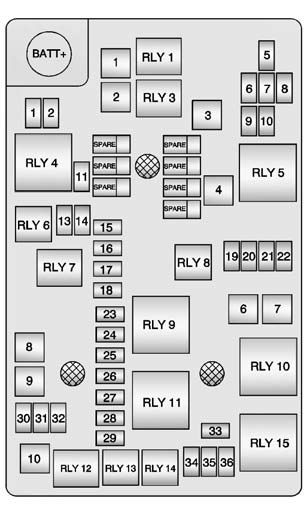

The vehicle may not be equipped with all of the fuses, relays, and features shown.


The vehicle may not be equipped with all of the fuses, relays, and features shown.

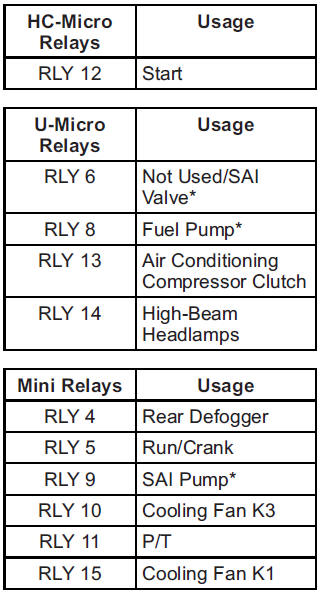

* = If equipped


* = If equipped

Fuses and Circuit Breakers
The wiring circuits in the vehicle are protected from short circuits by a combination of fuses, circuit breakers, and fusible thermal links. This greatly reduces the chance of fires caused by elec ...

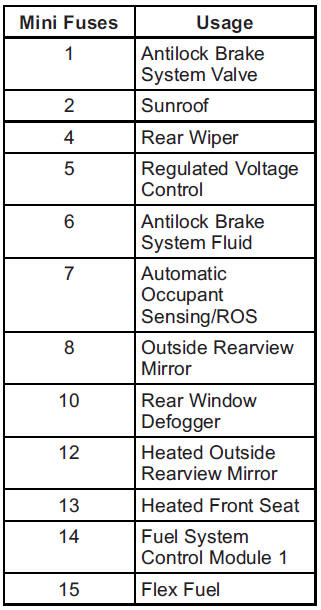

Instrument Panel Fuse Block
The instrument panel fuse block is on the underside of the driver side instrument panel. The vehicle may not be equipped with all of the fuses, relays, and features shown. ...
