Engine Coolant Temperature Sensor Replacement - Radiator

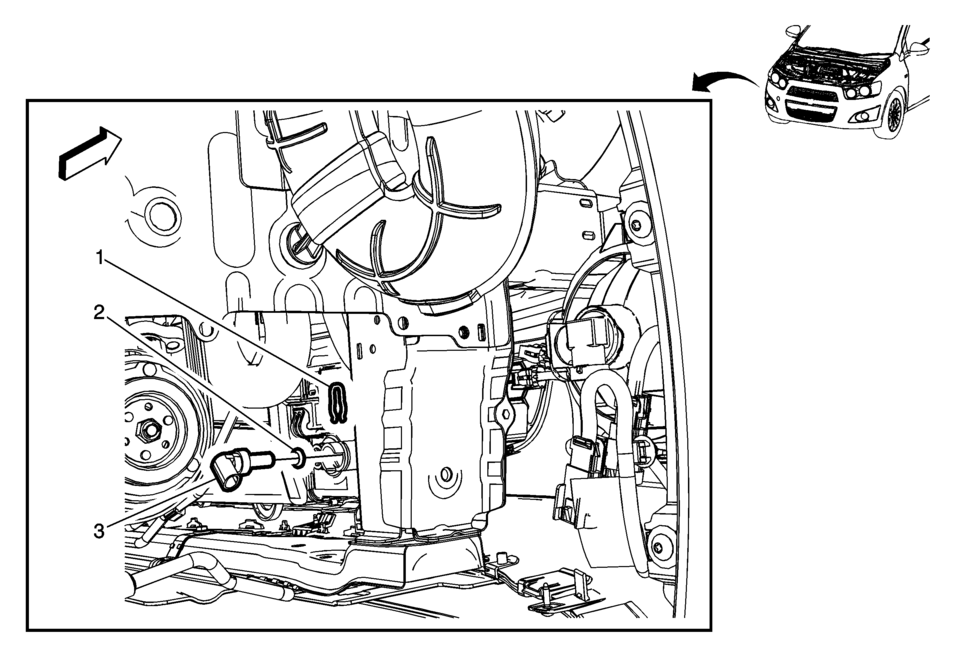

Callout	Component Name
Preliminary Procedure Drain the cooling system. Refer to Cooling System Draining and Filling. Remove the right front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement.
1	Engine Coolant Temperature Sensor Retainer
2	Engine Coolant Temperature Sensor Seal Procedure Discard the old seal and replace with a NEW seal if not replacing the sensor.
3	Engine Coolant Temperature Sensor Procedure Disconnect the engine coolant temperature sensor radiator mounted electrical sensor. Inspect and clean the radiator prior to installation.
