Chevrolet Sonic Repair Manual: Engine Flywheel Removal
Special Tools
EN-652 Flywheel Holder
For equivalent regional tools, refer to Special Tools.

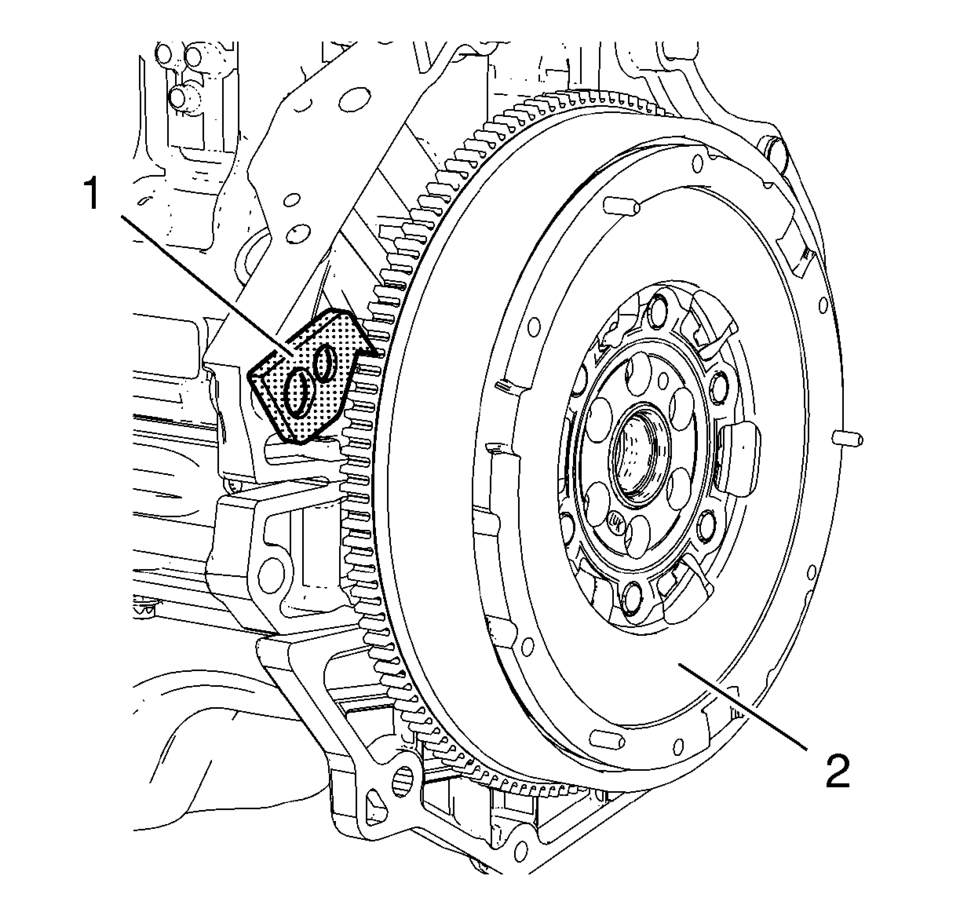

- Install EN-652 holder (1) to hold the engine flywheel (2).
- Remove and DISCARD the 6 engine flywheel bolts (2).

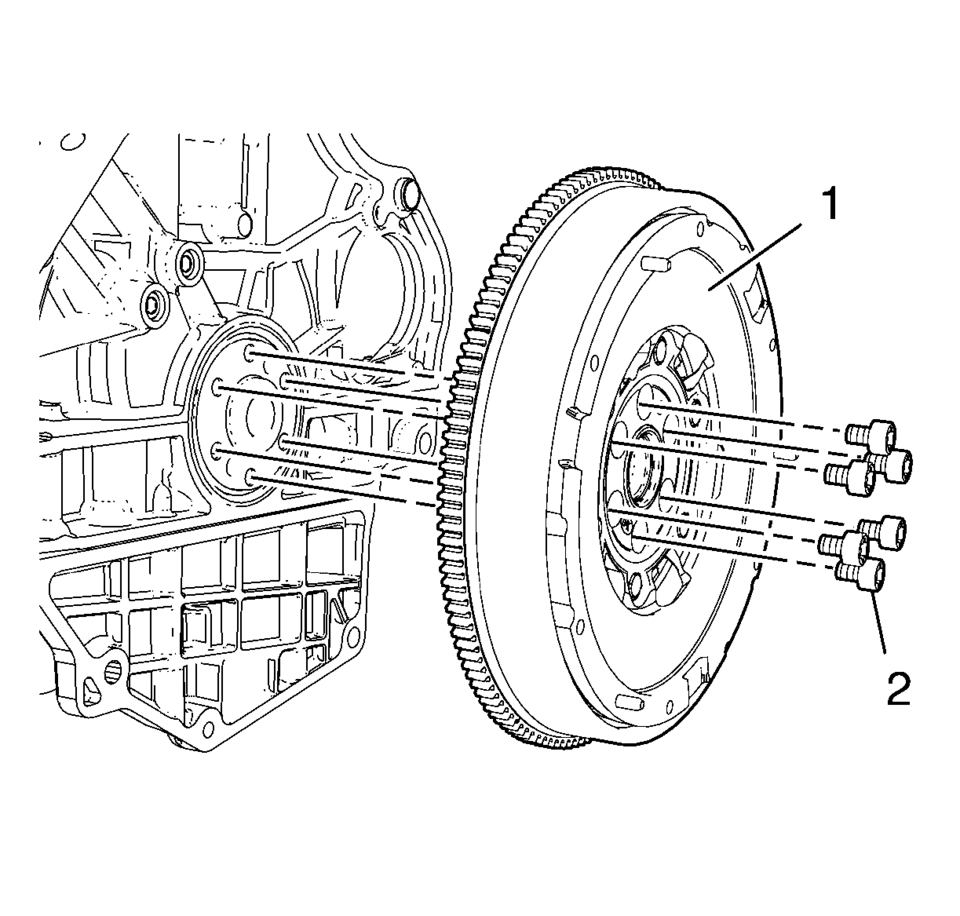

- Remove the engine flywheel (1).
Engine Flywheel Installation
Special Tools
EN-652 Flywheel Holder
EN-45059 Torque Angle Sensor Kit
For equivalent regional tools, refer to Special Tools.
Clean the thread in the crankshaft.
Install the cra ...
Engine Flywheel Replacement
Engine Flywheel Replacement
Callout
Component Name
Preliminary Procedure
Remove the clutch pressure and driven Plate . Refer to ...
