Chevrolet Sonic Repair Manual: Engine Oil Cooler Housing Removal

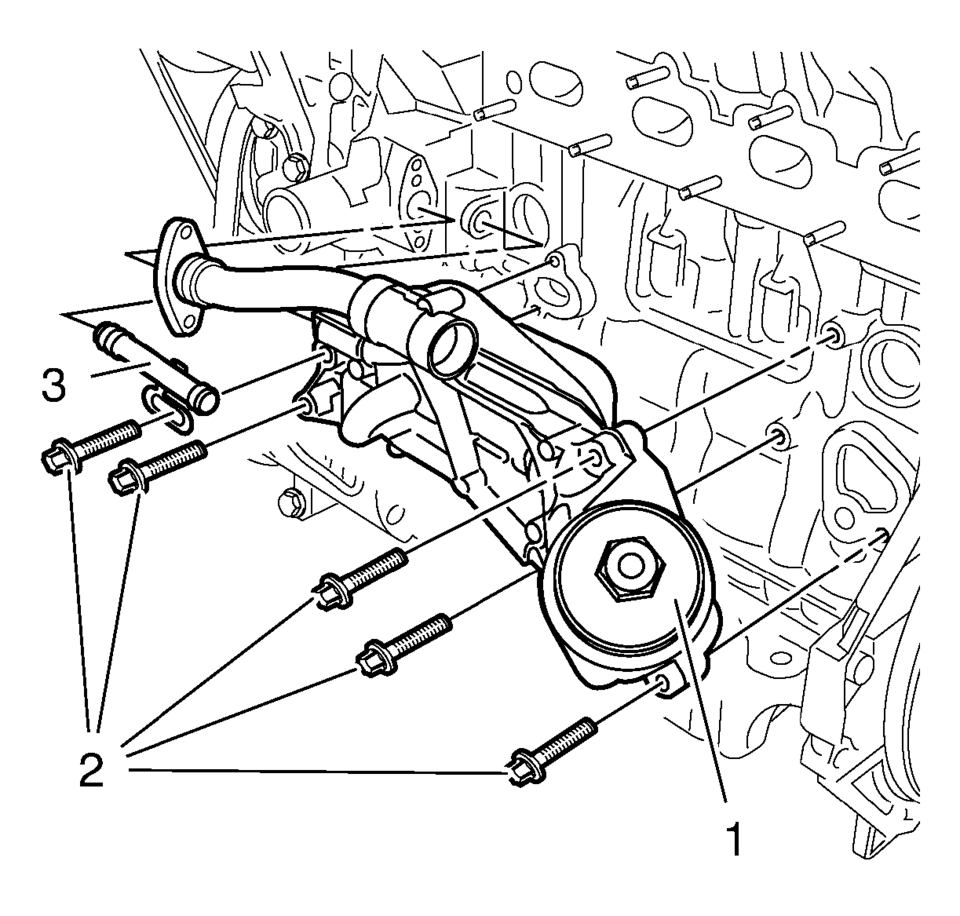

- Remove the 2 engine oil cooler pipe bolts (1).
- Remove the oil cooler pipe (2).
- Remove the 5 engine oil cooler housing bolts (2).
- Remove the engine oil cooler housing (1).
- Remove the engine oil cooler inlet pipe (3).
Engine Oil Cooler Housing Installation
Clean the engine oil cooler housing to thermostat housing sealing surfaces.
Install 2 NEW gaskets.
h.\.\,.\\..,v:..//
Install the engine oil cooler inlet pipe (3).
Instal ...
Engine Oil Cooler Housing Replacement
Removal Procedure
Drain the engine coolant. Refer to Cooling System Draining and Filling.
Drain the engine oil. Refer to Engine Oil and Oil Filter Replacement.
R ...
