Chevrolet Sonic Repair Manual: Engine Oil Heater Removal

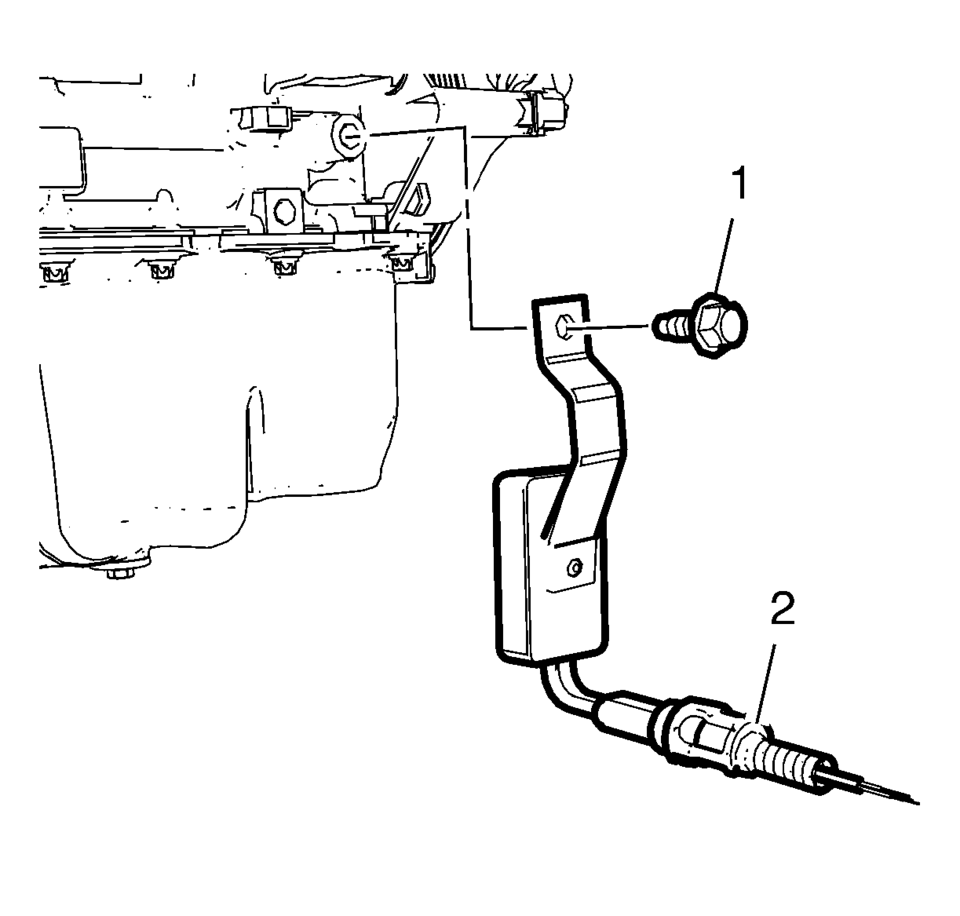

    Remove the engine oil heater bolt (1).
  1. Remove the engine oil heater bolt (1).
  2. Remove the engine oil heater (2).
Engine Oil Heater Installation
Install the engine oil heater (2). Caution: Refer to Fastener Caution. Install the engine oil heater bolt (1) and tighten to  40 Y (30 lb ...

Engine Oil Heater Replacement
Engine Oil Heater Replacement Callout Component Name Preliminary Procedures Raise and support the vehicle. Refer to  Lifting ...
