Engine Oil Heater Replacement

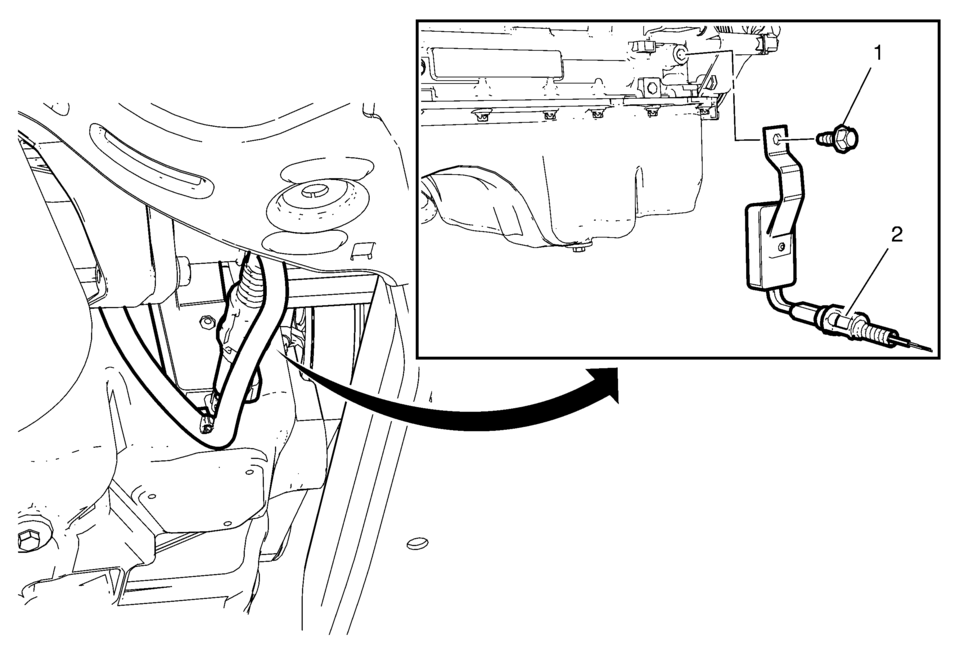

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle If equipped, remove the front insulator cover. Refer to Front Compartment Front Insulator Cover Replacement.
1	Engine Oil Heater Bolt Caution: Refer to Fastener Caution. Tighten 40 Y (30 lb ft)
2	Engine Oil Heater Procedure Disconnect the electrical connector.

Engine Oil Heater Removal

Remove the engine oil heater bolt (1). Remove the engine oil heater (2). ...
