Preliminary Procedure
Remove the air conditioning compressor. Refer to Air Conditioning Compressor Replacement. |
|
|
1 |

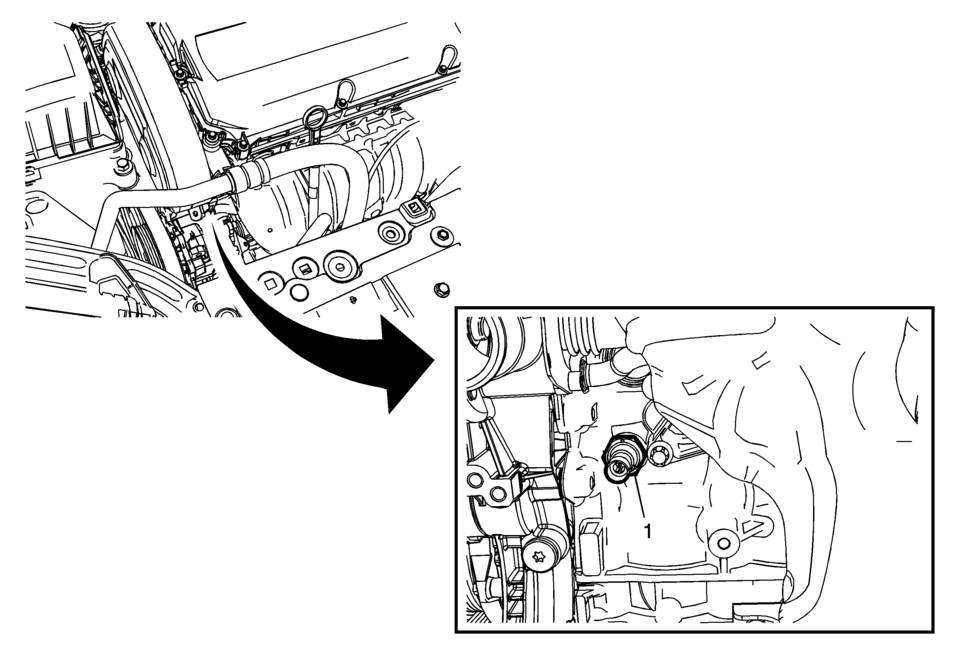

Oil Pressure Switch Caution: Refer to Fastener Caution. Procedure
Disconnect the oil pressure switch electrical wiring harness connector and remove the switch. Tighten
30 Y (22 lb ft) |
