Chevrolet Sonic Repair Manual: Evaporative Emission System Hose/Pipe Replacement

Chevrolet Sonic Repair Manual / Powertrain / Engine / Emissions / Evap / Evaporative Emission System Hose/Pipe Replacement

Removal Procedure

    Disconnect the evaporative emission pipe (1). Refer to Plastic Collar

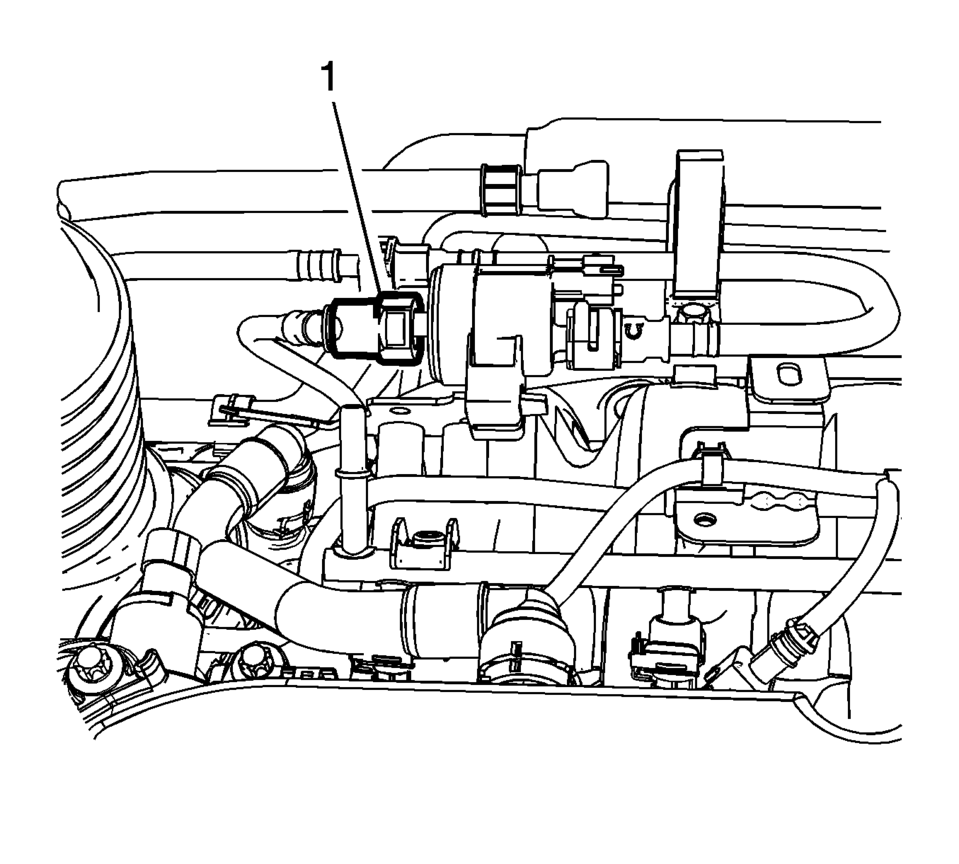

  1. Disconnect the evaporative emission pipe (1). Refer to Plastic Collar Quick Connect Fitting Service.

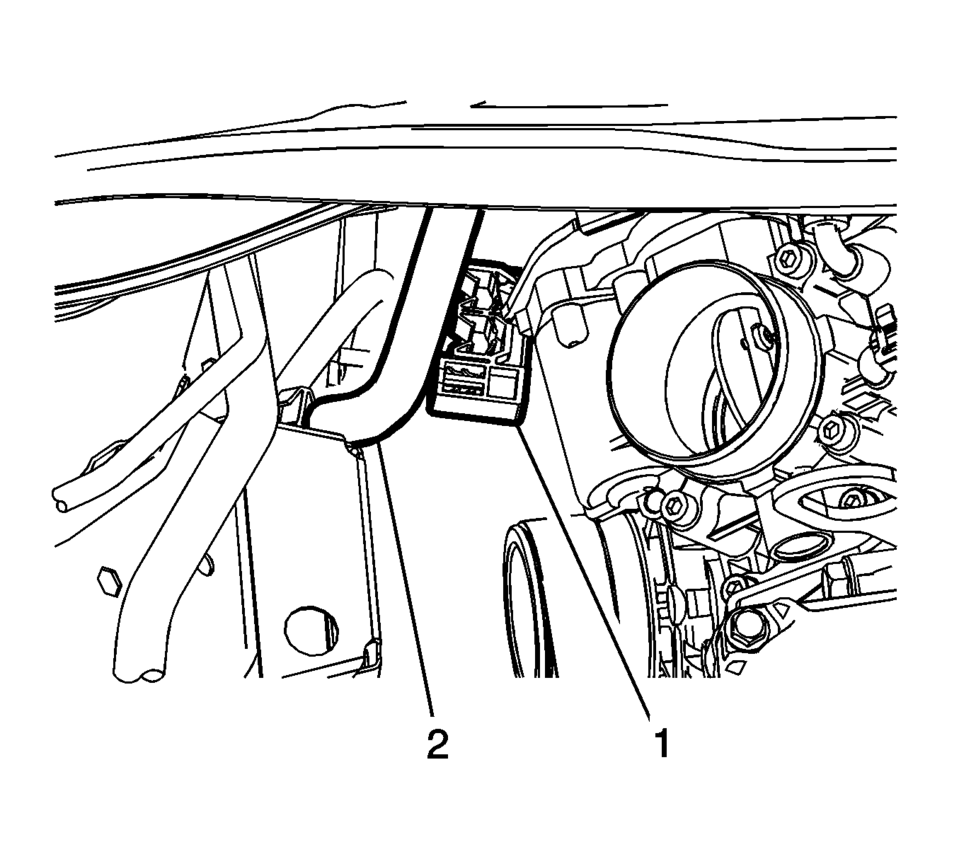

  2. Remove the plastic retainer (1) and disconnect the evaporative emission pipe (2).

  3. Lift and support the vehicle. Refer to Lifting and Jacking the Vehicle.

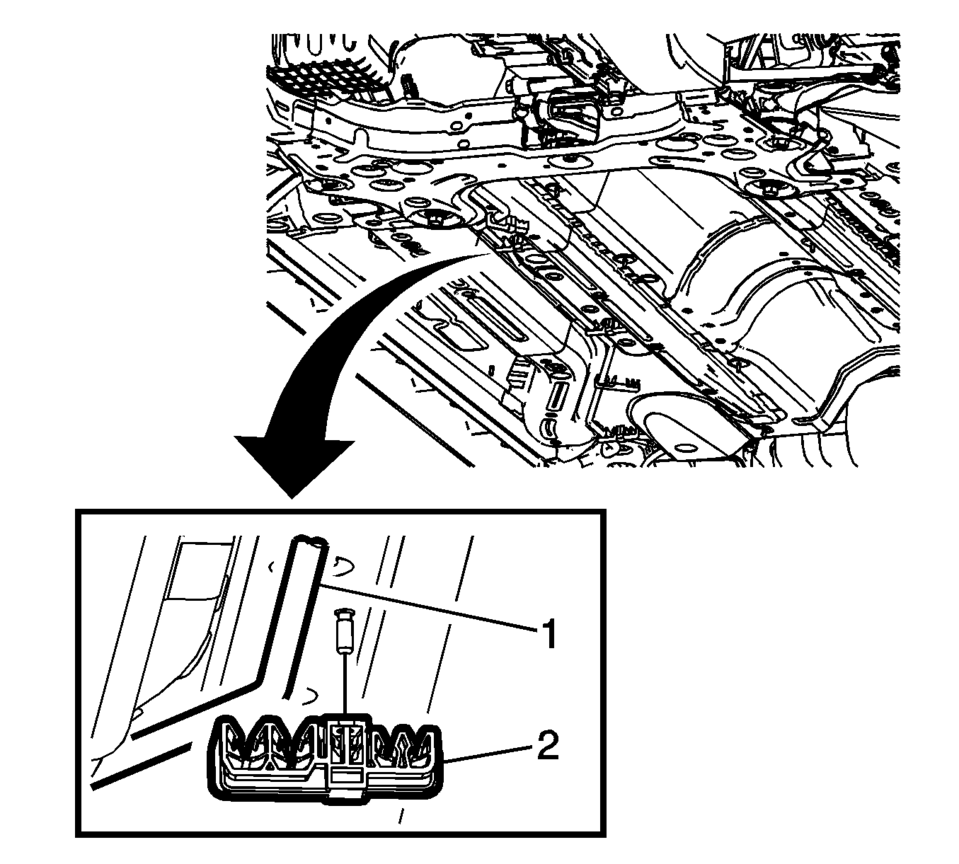

  4. Disconnect the evaporative emission pipe (1) from the plastic retainers (2).

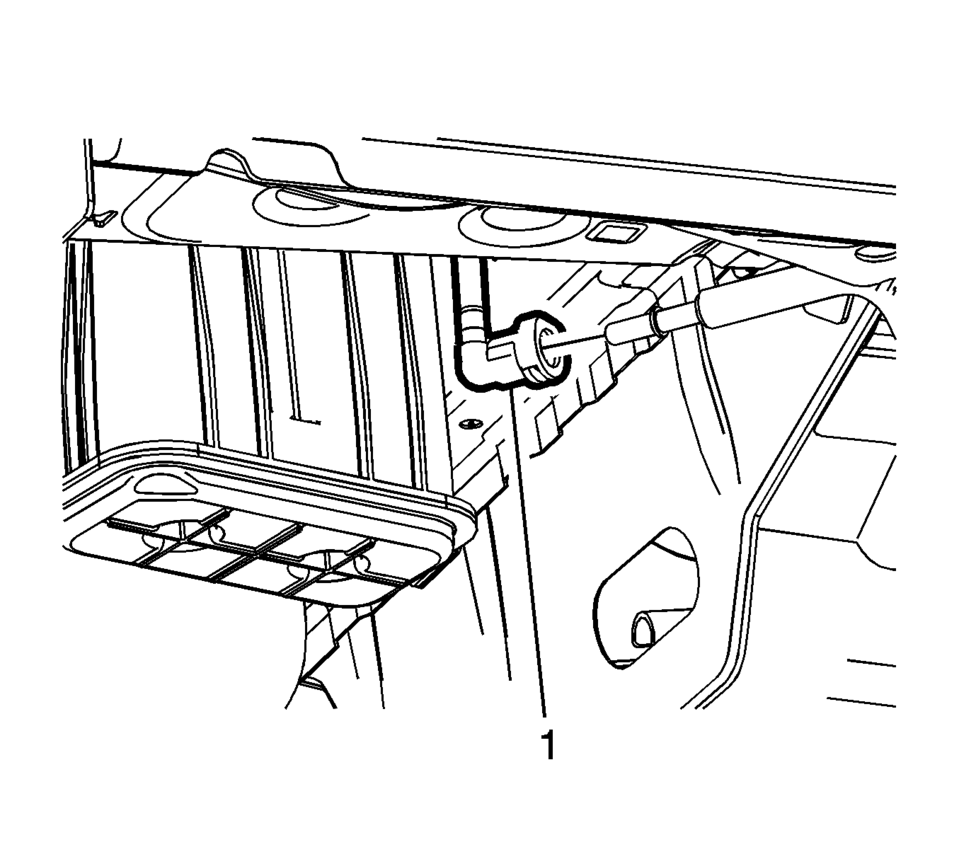

  5. Disconnect the evaporative emission pipe (1). Refer to Plastic Collar Quick Connect Fitting Service.
  6. Remove the evaporative emission pipe.
Installation Procedure

    Install the evaporative emission pipe.
  1. Install the evaporative emission pipe.
  2. Connect the evaporative emission pipe (1). Refer to Plastic Collar Quick Connect Fitting Service.


  3. Connect the evaporative emission pipe (1) to the plastic retainers (2).

  4. Connect the evaporative emission pipe (2) and install the plastic retainer (1).

  5. Connect the evaporative emission pipe (1). Refer to Plastic Collar Quick Connect Fitting Service.
Evaporative Emission System Hose/Pipe Replacement
Special Tools CH-807 Closure Plugs CH-6015 Closure Plugs For equivalent regional tools, refer to Special Tools. Removal Procedure Warning: Refer to Gasoline/Gasoline Vapors War ...

Fuel and Evaporative Emission Hose/Pipe Connection Cleaning Caution
Caution: Clean all of the following areas before performing any disconnections in order to avoid possible contamination in the system: The fuel pipe connections The hose connections ...
