Chevrolet Sonic Repair Manual: Exhaust Camshaft Installation
- Lubricate camshaft and camshaft bearing caps with engine oil.

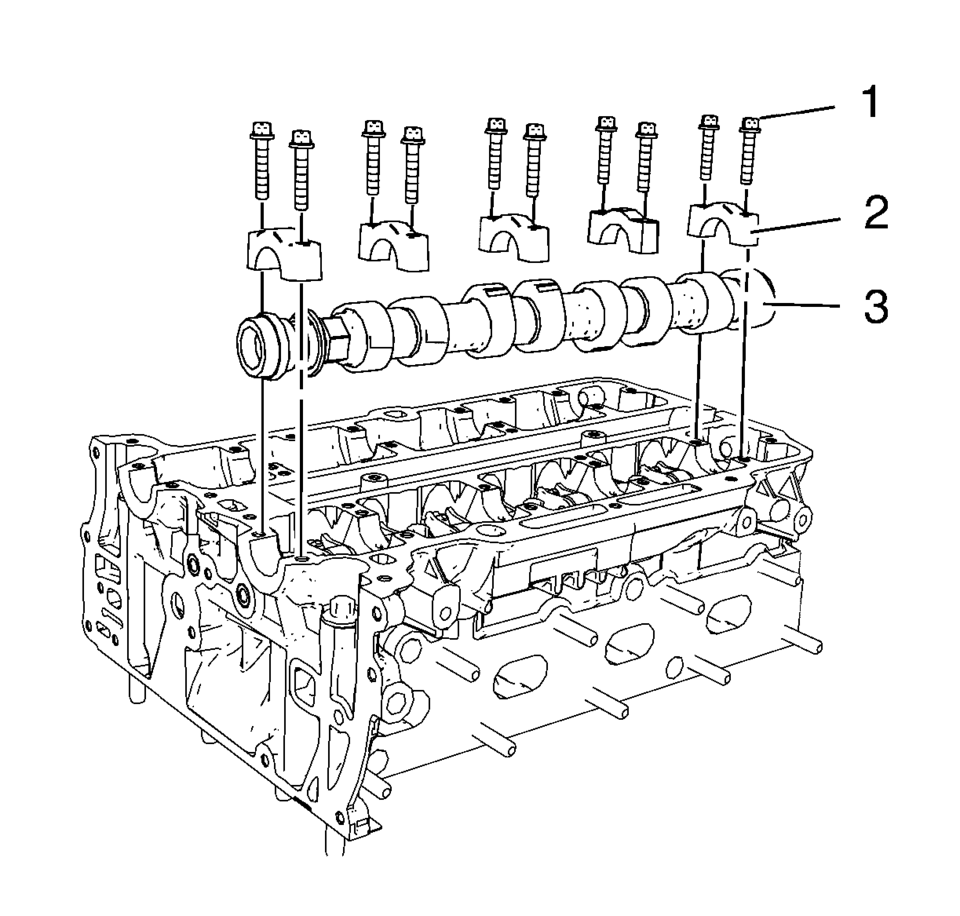

- Install the exhaust camshaft (3).
- Install the 5 camshaft bearing caps (2).
- Install the 10 camshaft bearing cap bolts (1) and handtighten.

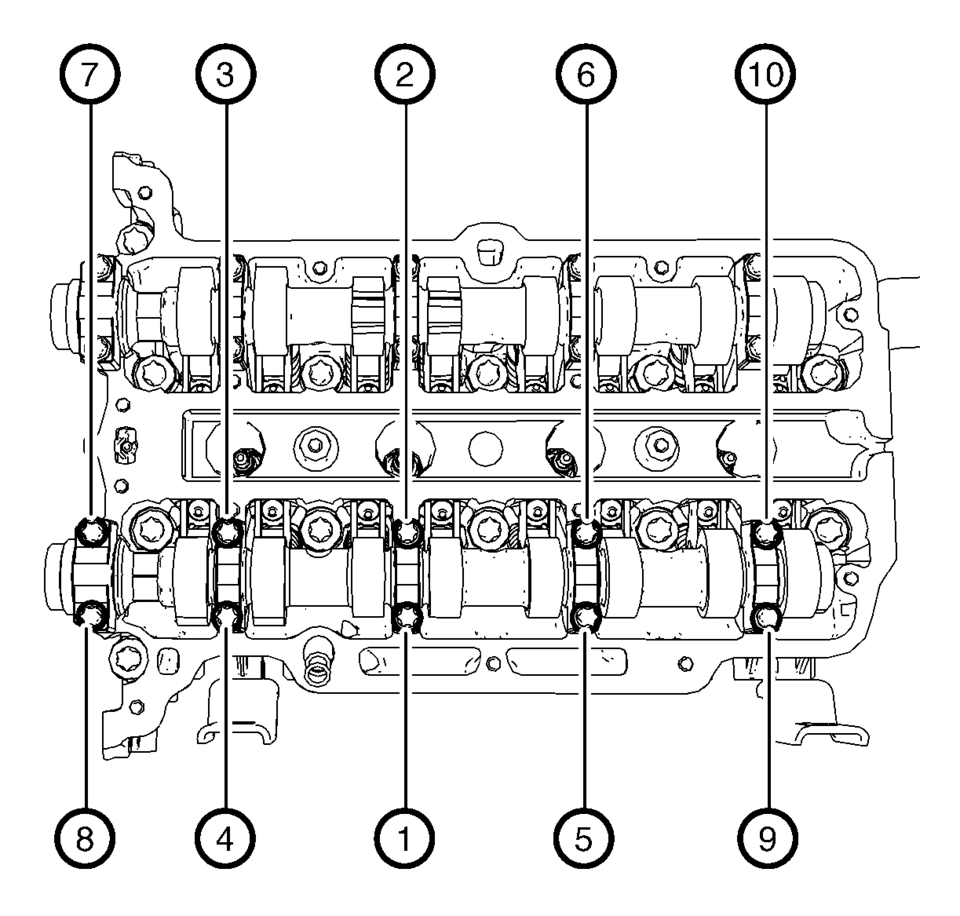

- Tighten the camshaft bearing cap bolts one turn at a time and in a spiral
sequence as shown to 8 Y (71 lb in)
.
Note:
Mind the markings on the camshaft bearing caps. Camshaft bearing caps should be installed in their original position.
Caution:
Refer to Fastener Caution.
Note:
Tighten the camshaft bearing cap bolts one turn at a time in order to avoid shape distortion of the camshaft.
Camshaft Replacement
Special Tools
EN-422 Installer
For equivalent regional tools, refer to Special Tools.
Removal Procedure
Note: Take extreme care to prevent any scratches, nicks or
...
Exhaust Camshaft Removal
Remove the camshaft bearing cap bolts in a spiral sequence as shown one
turn at a time until there is no spring tension pushing on the camshaft.
Note: Mind the markings on the ...
