Chevrolet Sonic Repair Manual: Exhaust Manifold Heat Shield Replacement (LUW)

Chevrolet Sonic Repair Manual / Powertrain / Engine / Engine Block / Exhaust2 / Exhaust Manifold Heat Shield Replacement (LUW)

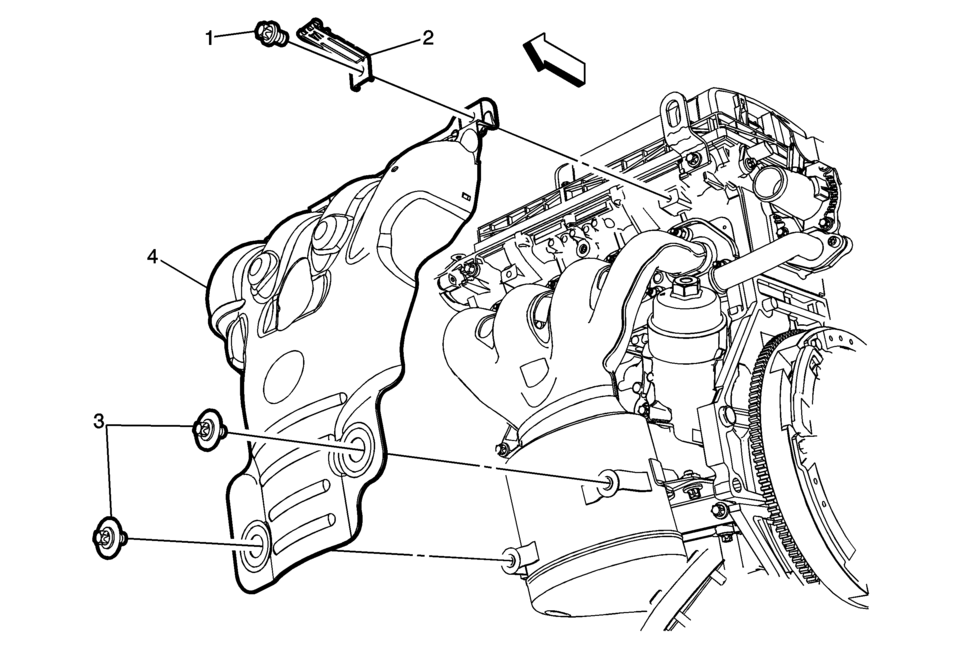

Catalytic Converter Heat Shield Replacement

Callout

Component Name

Warning:

Refer to Exhaust Service Warning.

Preliminary Procedures

  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection.
  2. Remove the oil level indicator tube. Refer to Oil Level Indicator Tube Replacement.
  3. Disconnect the heated oxygen sensor connector.

1

Catalytic Converter Heat Shield Bolt

Caution:

Refer to Fastener Caution.

Tighten


15 Y (11 lb ft)

2

Heated Oxygen Sensor Harness Bracket

3

Catalytic Converter Heat Shield Bolt (Qty: 2)

Tighten


8 Y (71 lb in)

4

Catalytic Converter Heat Shield
