Floor Air Outlet Duct Replacement - Left Side

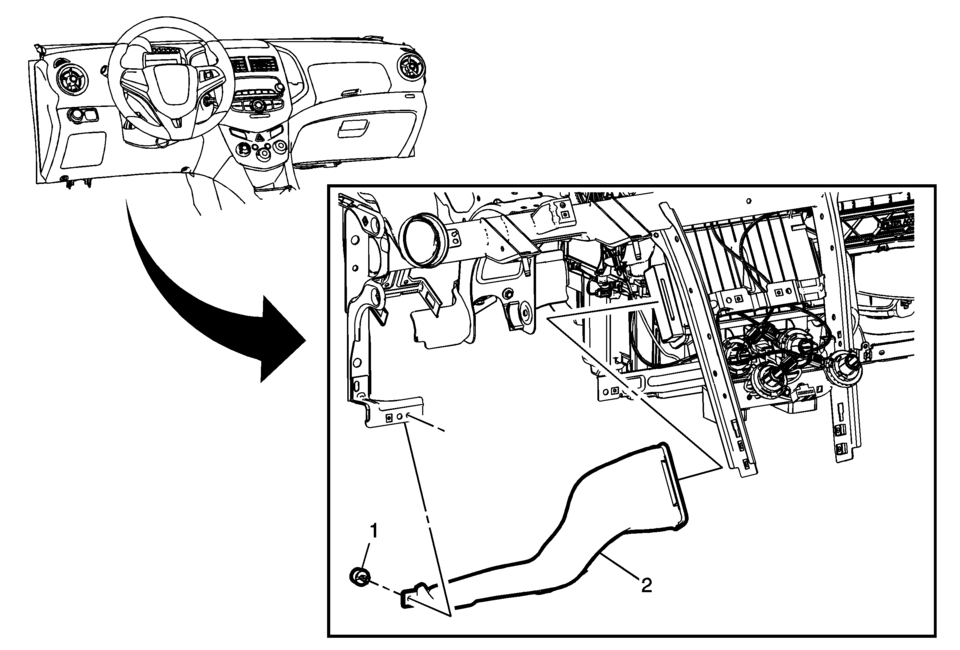

Callout	Component Name
Preliminary Procedure Remove the instrument panel insulator, if equipped. Remove the instrument panel lower trim pad cover. Refer to Instrument Panel Lower Trim Pad Cover Replacement.
1	Floor Air Outlet Duct Fastener
2	Floor Air Outlet Duct
