Chevrolet Sonic Owner's Manual: Fog Lamps

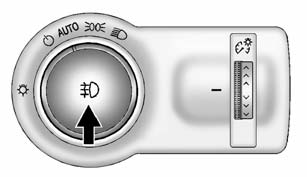

For vehicles with front fog lamps, the button is on the outboard side of the instrument panel.
The ignition must be on to turn on the fog lamps.
(Fog Lamps): Press to turn the
fog lamps on or off. An indicator light on the instrument cluster comes on when
the fog lamps are on.
The fog lamps come on together with the parking lamps.
If the high-beam headlamps are turned on, the fog lamps will turn off. If the high-beam headlamps are turned off, the fog lamps will turn back on again.
Some localities have laws that require the headlamps to be on along with the fog lamps.
Turn and Lane-Change Signals
Move the lever all the way up or down to signal a turn.
An arrow on the instrument cluster will flash in the direction of the turn or
lane change.
Raise or lower the lever until the arrow starts ...
