Chevrolet Sonic Repair Manual: Front Compartment Front Insulator Cover Replacement
|

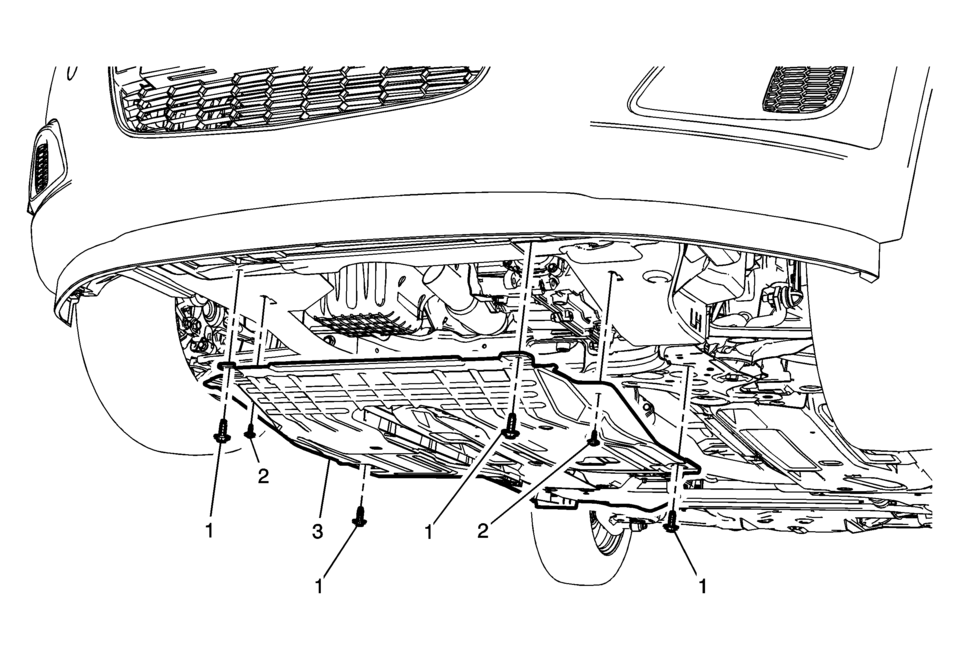

Callout |
Component Name |
|---|---|
|
1 |
Front Compartment Front Insulator Cover Screw (Qty:?€‰2) Caution: Refer to Fastener Caution.
2.5?€‰Y (22?€‰lb?€‰in) |
|
2 |
Front Compartment Front Insulator Cover Bolt (Qty:?€‰4) Tighten
22?€‰Y (16?€‰lb?€‰ft) |
|
3 |
Front Compartment Front Insulator Cover |
Drivetrain and Front Suspension Frame Replacement
Special Tools
EN-45059 Angle Meter
For equivalent regional tools, refer to Special Tools.
Removal Procedure
Support the radiator and condenser from above using the upper brackets
...
Front Wheelhouse Liner Inner Front Extension Replacement (Left SIde)
Front Wheelhouse Liner Inner Front Extension Replacement
Callout
Component Name
Preliminary Procedure
Remove the tire and wheel ...
